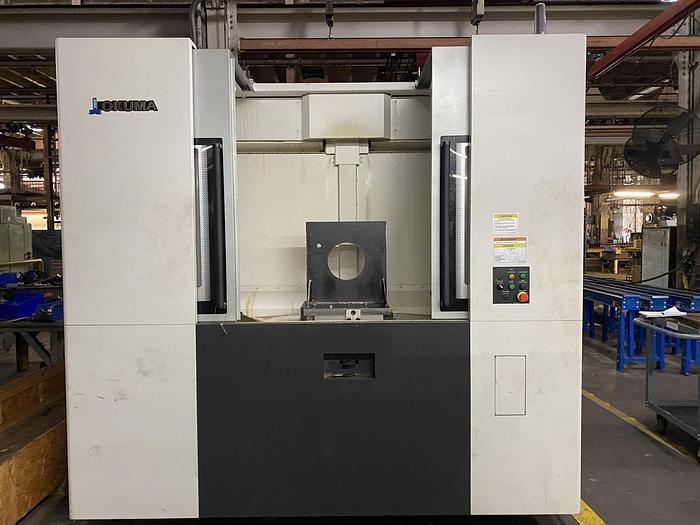

Okuma MB5000H CNC 4 Axis Horizontal Machining Center
Sold
Okuma MB5000H CNC 4 Axis Horizontal Machining Center
Location:Belgium, WI
Description

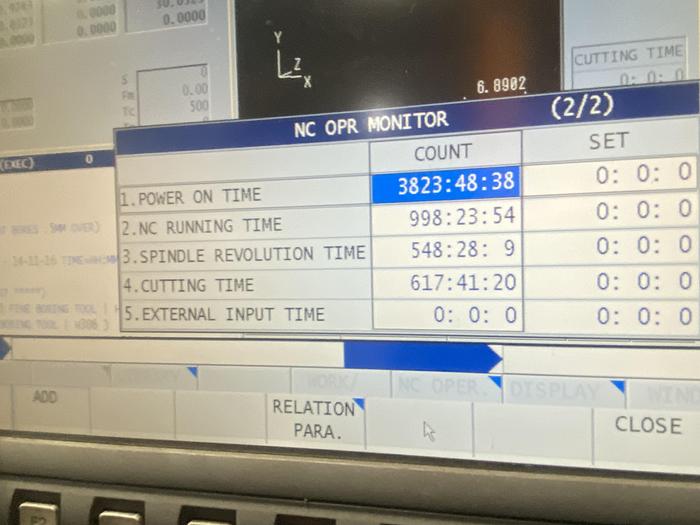

P300MA, 617 Cutting Hours, MP H.P. Coolant Thru Spindle, Renishaw Part Probe, Tool Setter, Coolant Tank, Lift Up chip Conveyor, Tooling Pkg, List Of Control options Available
Specifications
| Manufacturer | Okuma |
| Model | MB5000H |
| Year | 2016 |
| Condition | Used |
| Serial Number | 207917 |
| Stock Number | 3546 |
| Pallet Size | (2) 19.69" x 19.69" |
| Pallet Load Capacity | 1,100 LBS |
| X-Axis Travel | 29.92" |
| Y-Axis Travel | 29.92" |
| Z-Axis Travel | 31.89" |
| B-Axis Table Indexing | Full B-Axis |
| Spindle Taper | BBT CT# 40 |
| Spindle Speed | 50-15,000 RPM |
| Spindle Motor | 35 HP |
| Rapid Traverse Rate X, Y & Z | 2,362 IPM |
| Auto Tool Changer | 60 ATC |
| Max. Tool Length | 11.81" |
| Max. Tool Diameter | 2.76" |
| Machine Dimensions | 106.1" x 186" x 113.35" |
| Approx. Machine Weight | 25,300 Lbs |
