Zayer KF-5000 CNC Universal Bed Mill
No longer available

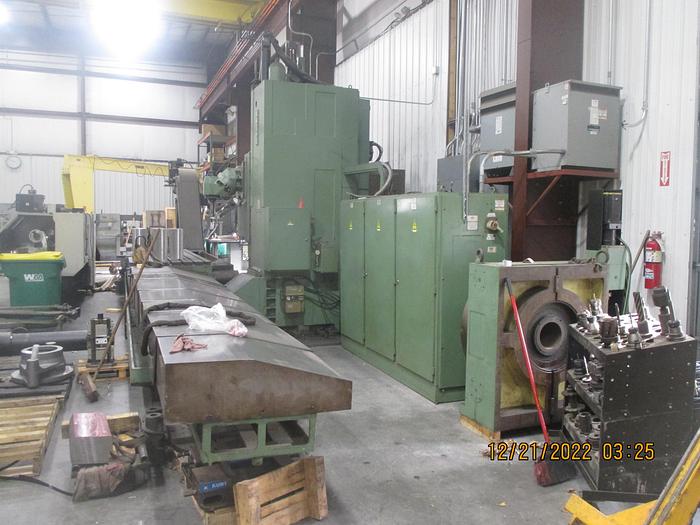

Zayer KF-5000 CNC Universal Bed Mill
Location:Wisconsin
Description

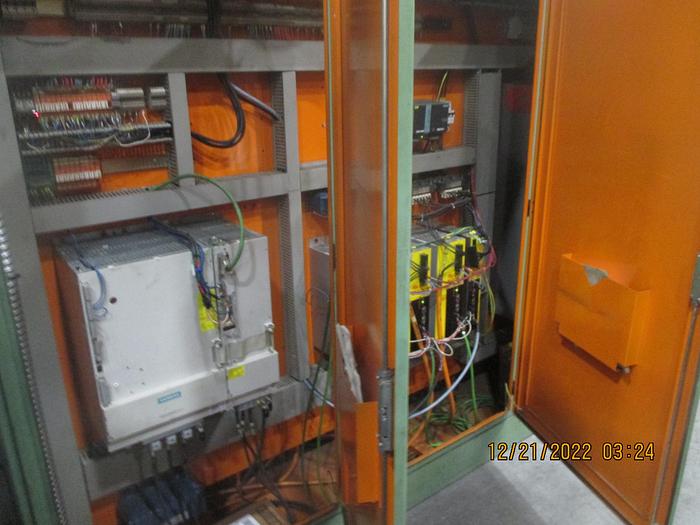

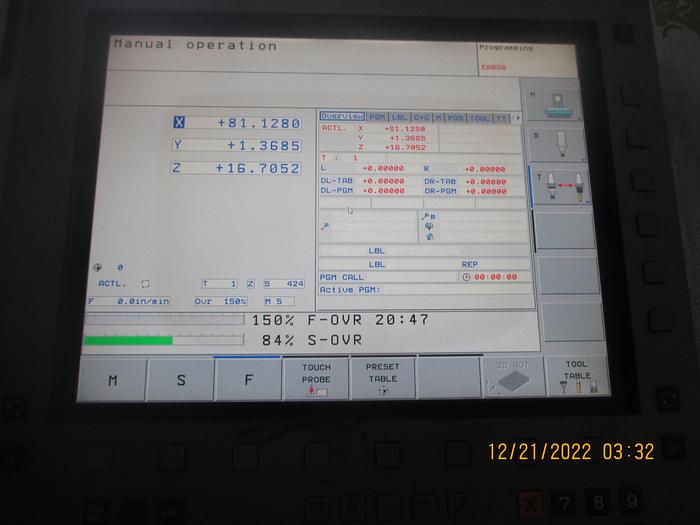

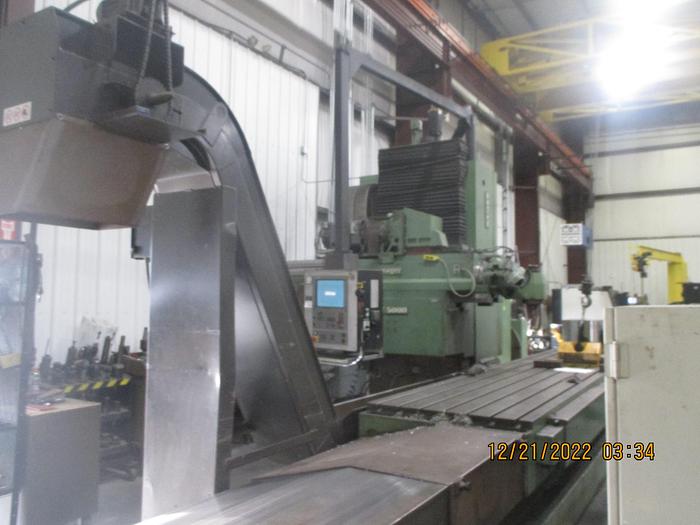

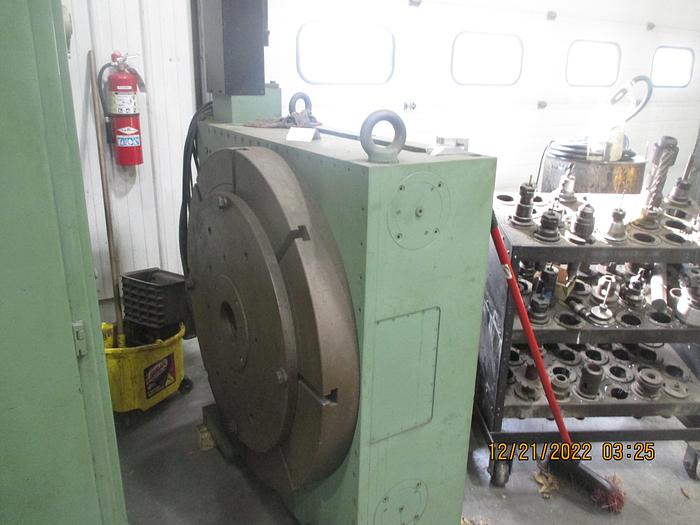

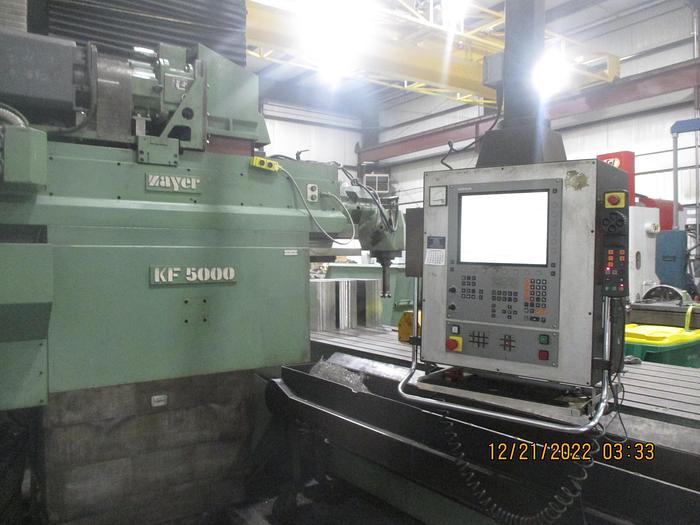

Heidenhain TNC 320, Retrofit control in 2014, New Siemens Spindle Motor And Drive, New Servo Motors & Drives, 39" Horiz./Vert.4th Axis Rotary Table Controlled Through The CNC Control updated 2014, Power Draw Bar, Lift Up Chip Conveyor, Hydraulic Tailstock,(1) One Vertical / Horizontal milling head, (1) Universal milling head with manual rotation.
Machine is currently under power in plant and ready for production.
Specifications
| Manufacturer | Zayer |
| Model | KF-5000 |
| Year | 1997 |
| Condition | Used |
| Stock Number | 3564 |
| X-Axis Travel | 185" |
| Y-Axis Travel | 49" |
| Z-Axis Travel | 59" |
| Table Size | 39.37" x 196.85" |
| Table Weight Capacity | 22,000 lbs |
| Spindle Motor | 40 HP |
| Spindle Speed | 3,000 RPM |
| Spindle Taper | #50 |
