Haas UMC-750SS CNC 5-Axis Vertical Machining Center
Sold
Haas UMC-750SS CNC 5-Axis Vertical Machining Center
Location:Belgium, WI
Description

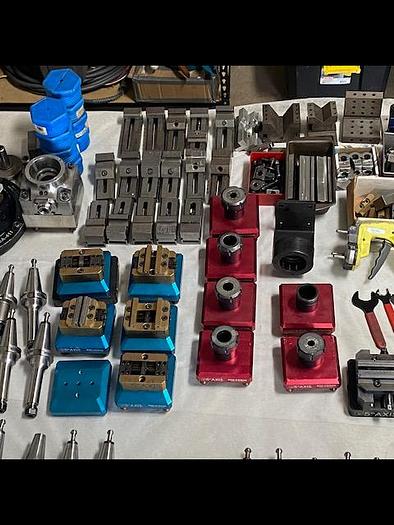

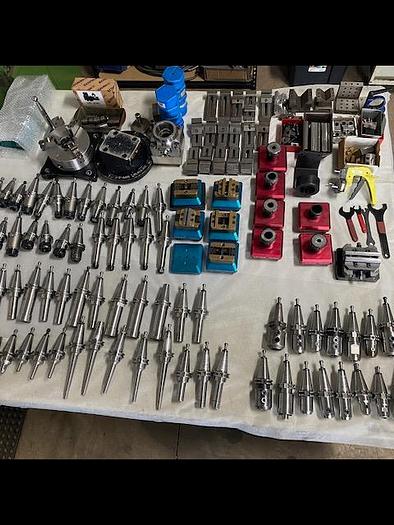

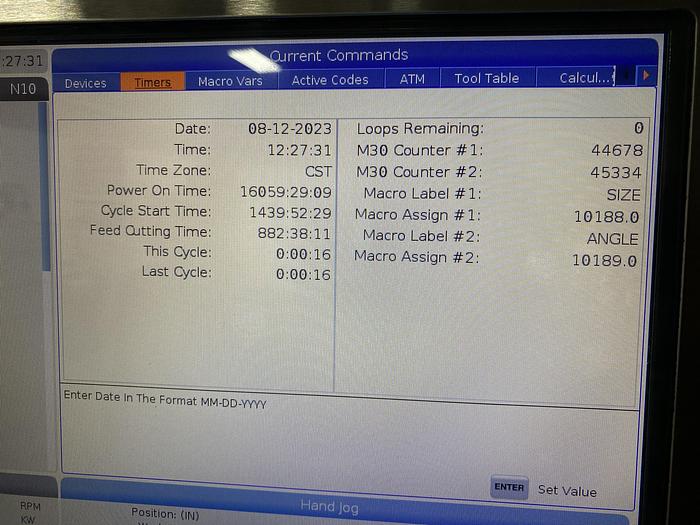

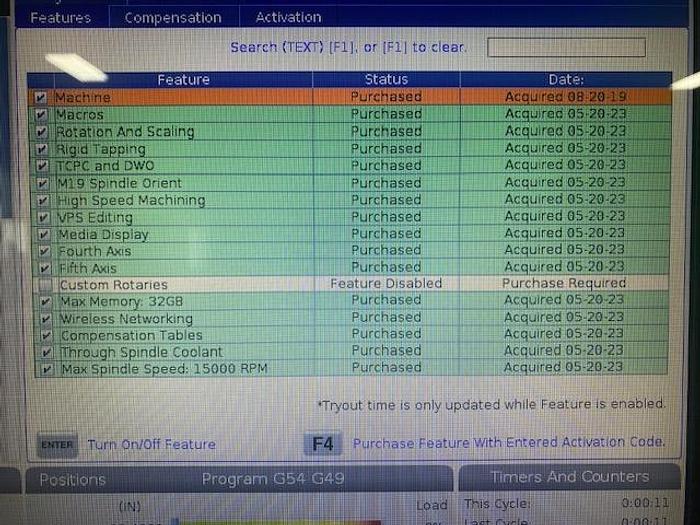

Haas Touch Screen Control, Tooling Pkg, 5-Axis fixtures, 1000 PSI CTS, Lift Up Chip, 1412 Cycle Start Time, High Intensity lighting,Rotation & Scaling, Rigid Tapping, High Speed Machining, 32 GB Max. Memory,Wireless Networking, Compensation Tables.
Specifications
| Manufacturer | Haas |
| Model | UMC-750SS |
| Year | 2017 |
| Condition | Used |
| Stock Number | 3570 |
| X-Axis Travel | 30" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Nose To Platter Max. | 24" |
| Spindle Nose To Platter Min. | 4" |
| Spindle Speed | 15,000 RPM |
| Spindle Motor | 30 HP Inline Direct Drive |
| Max. Torque | 90 Ft-lbs @ 2000 RPM |
| Spindle Taper | Cat#40 |
| B-Axis Tilt | 120 Degree to 35- Degree |
| B-Axis Max. Speed | 170 Degree Per Sec. |
| C-Axis Rotation | 360 Degree |
| C-Axis Rotation Speed | 179 Degree Per Sec. |
| Max. Part Swing | 27" |

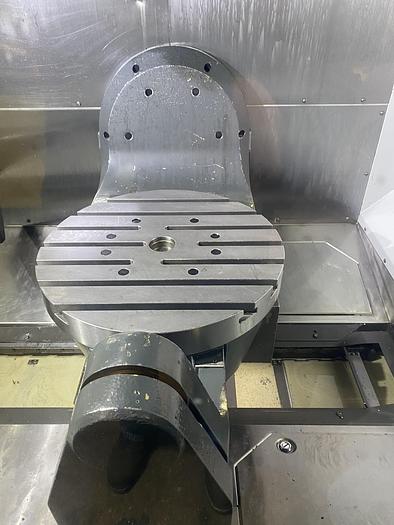

| Platter Diameter | 19.70" |
| Max. Weight on Platter | 660 lbs |
| T-Slot Width | 0.626" to 0.630" |
| No. Of T-Slots | 7 |
| Max. Cutting Feedrate | 650 IPM |
| Rapids On X- Axis | 1200 IPM |
| Rapids On Y-Axis | 1200 IPM |
| Rapids On Z-Axis | 1200 IPM |

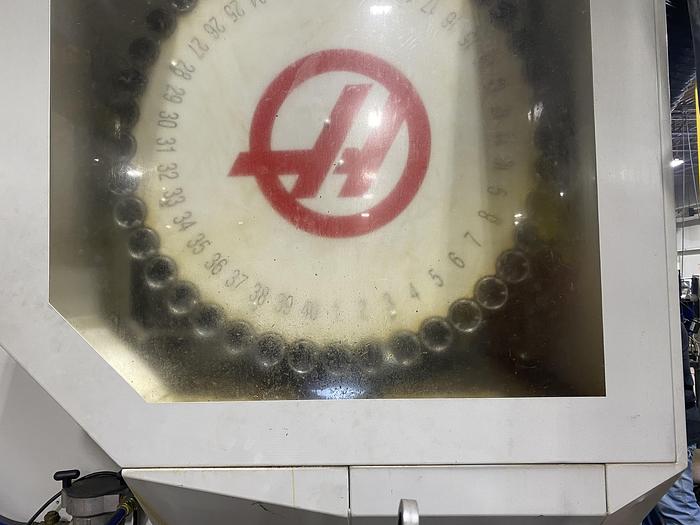

| Auto Tool Change Capacity | 40+1 |
| Max. Tool Diameter Full | 2.5" |
| Max. Tool Diameter Adjacent Empty | 5" |
| Max. Tool Length | 12" |
| Max. Tool Weight | 12 lbs |
| Tool to Tool Time | 1.8 sec. |
| Chip To Chip Time | 2.4 sec. |
