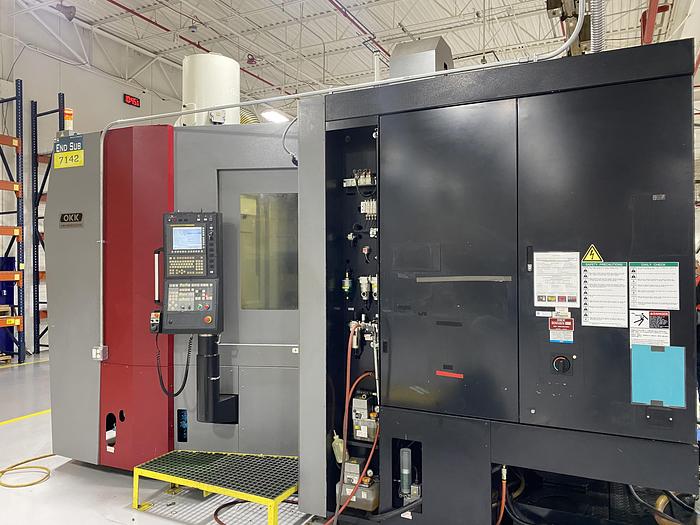

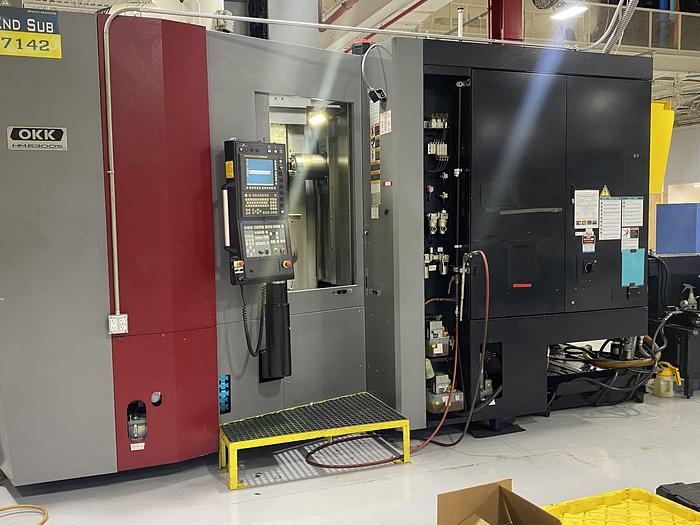

Okk HM6300S CNC 4-Axis Horizontal Machining Center
Sold
Okk HM6300S CNC 4-Axis Horizontal Machining Center
Location:Belgium, WI
Description

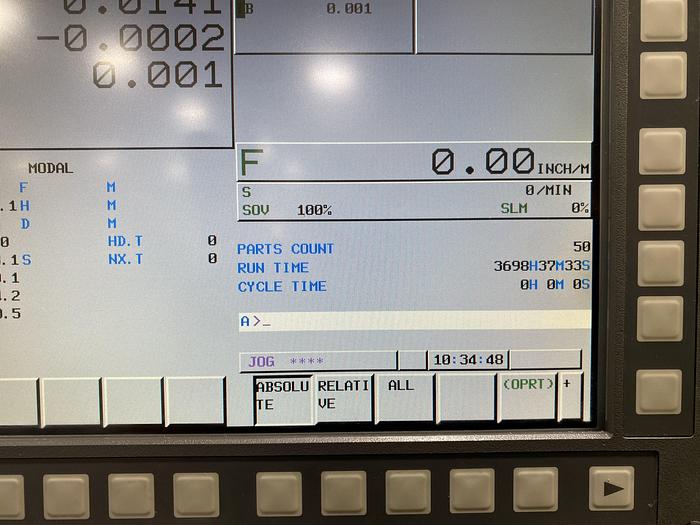

Fanuc 31i A5, Spindle Chiller unit, 1000 PSI High Pressure CTS, Tool Length Measuring, Part Probe, Cooled Ballscrews, Thermal Comp, Lift Up Chip Conveyor, Coolant Pumps, Mist Collector, Highly Rigid Roller Way Design, Compact for all types of machining
Specifications
| Manufacturer | Okk |
| Model | HM6300S |
| Year | 2014 |
| Condition | Used |
| Serial Number | MA98999 |
| Stock Number | 3578 |

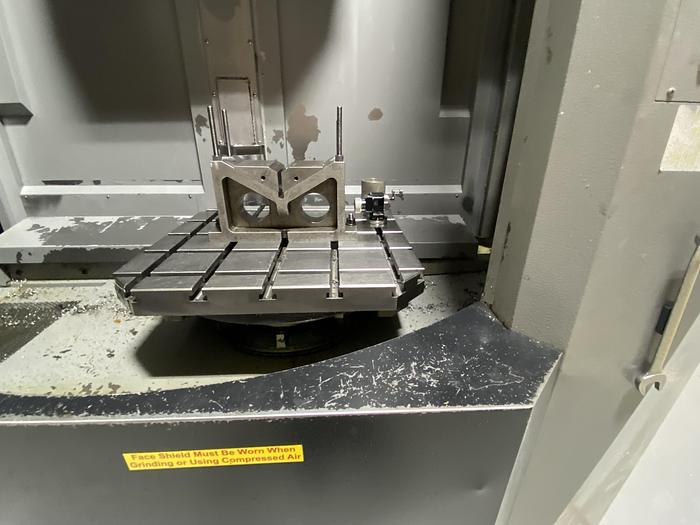

| Pallet Size | (2) 24.5" x 24.5" |
| Pallet Weight Capacity | 1,543 lbs |
| Pallet Rotation | Full B-Axis |
| X-Axis Travel | 31.50" |
| Y-Axis Travel | 29.53" |
| Z-Axis Travel | 34.65" |
| Spindle Motor | 40 HP |
| Max. Spindle Speed | 12,000 RPM |
| Spindle Taper | CT# 50 |

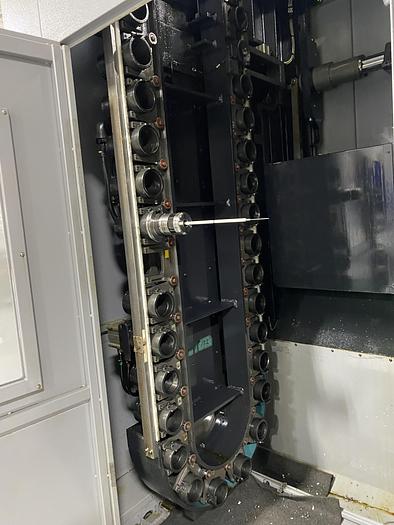

| Auto Tool Change Capacity | 60 ATC |
| Rapid Feed Rates X, Y & Z | 2953 IPM |
| Approx. Machine Weight | 31,500 lbs |
