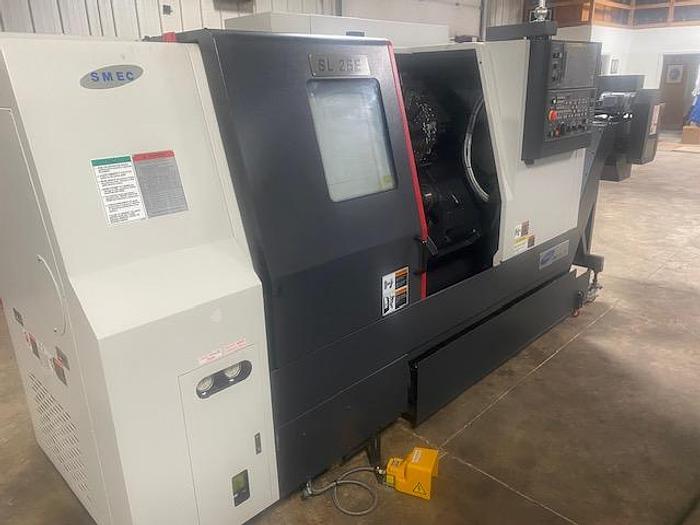

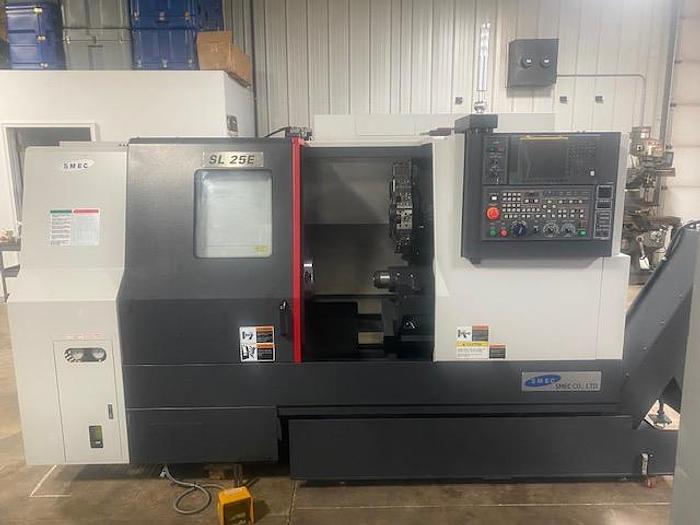

Samsung SL25E CNC Slant Bed Lathe
Samsung SL25E CNC Slant Bed Lathe
Contact us for price
Location:Belgium, WI
orCall 1-262-284-5611
Description

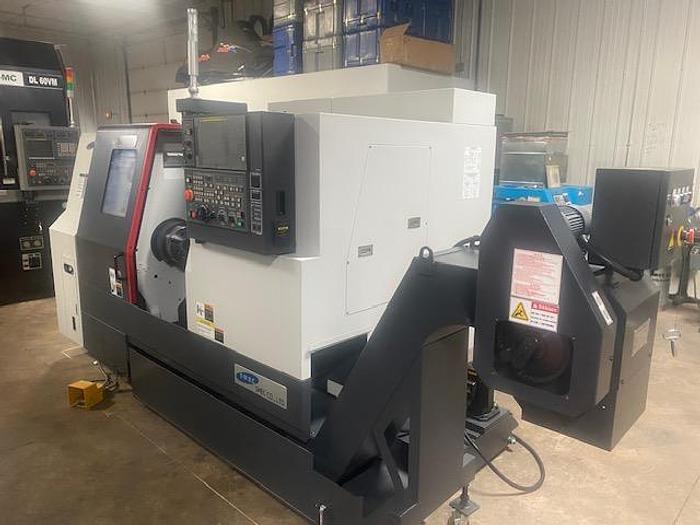

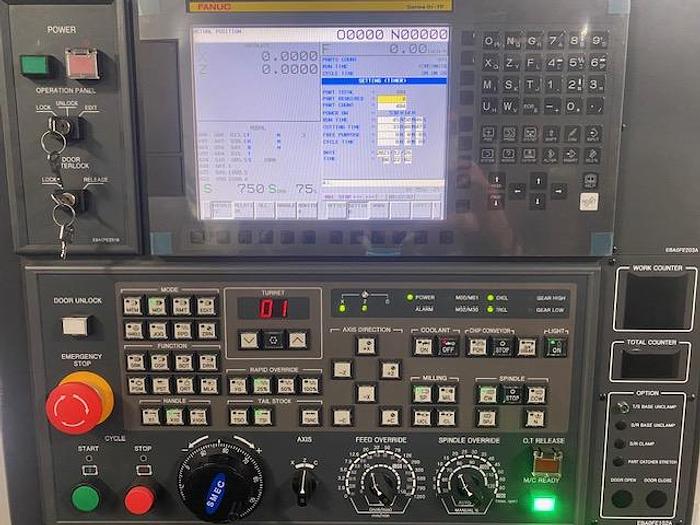

This machine is built with heavy cutting in mind with hard and ground box way design, Fanuc Oi TF, Lift Up Chip conveyor, Box Ways, 45 degree slant bed, 58.12 Gallon Coolant Tank, Approx 100 hours. This machine is on our our showroom floor in WI., IN NEW CONDITION.
Specifications
| Manufacturer | Samsung |
| Model | SL25E |
| Year | 2019 |
| Condition | Used |
| Stock Number | 3577 |
| Swing Over Bed | 20.47" |
| Swing Over Cross Slide | 13.78" |
| Max. Turning Diameter | 14.96" |
| Max. Turning Length | 20.87" |

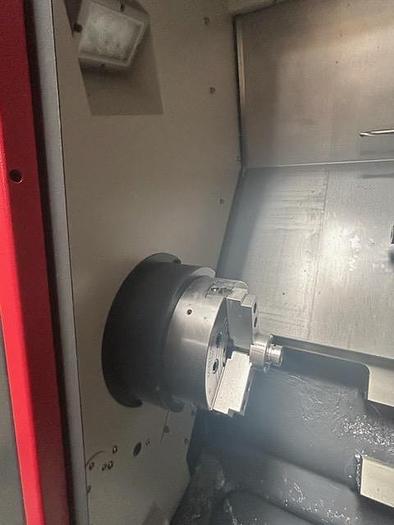

| Chuck Size | 10" |
| Spindle Nose | A2-8 (ASA) |
| Main Spindle Motor | 35/30 HP |
| Spindle Speed | 3,500 RPM |
| Spindle Bore Diameter | 3.39" |
| Draw Tube I.D. | 3.03" |
| Max. Spindle Torque | 544.9 Ft-lbs |
| X-Axis Travel | 8.66" |
| Z-Axis Travel | 23.23" |
| Rapid Traverse X & Z | 945 IPM/1,181 IPM |
| Repeatability X & Z | +/- 0.0008" / +/- 0.00012" |
| No. Of Tool Stations | 12 Tools (12) O.D. (12) I.D. |
| Turret Indexing Speed | 0.25 Sec. |
| Tailstock Taper | MT#4 |
| Quill Diameter | 4.33" |
| Quill Travel | 3.94" |
| Machine Dimensions | 144" x 91" x 87" |
| Approx. Machine Weight | 11,860 lbs |
