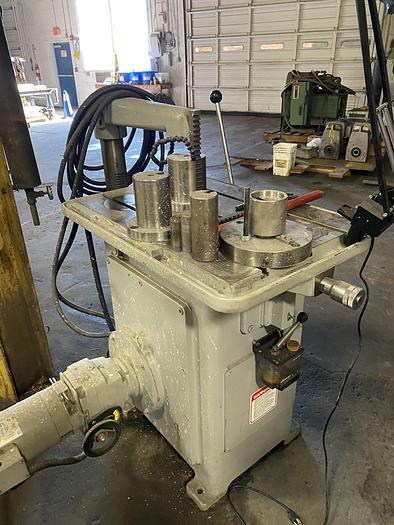

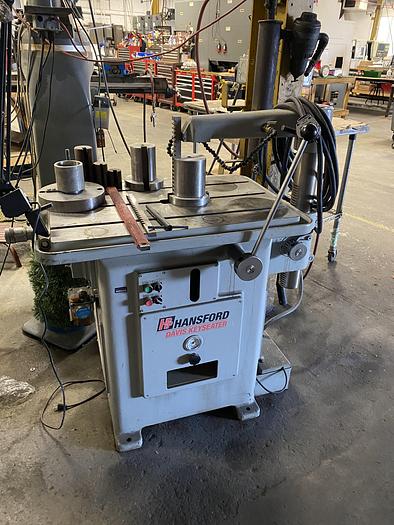

Hansford Davis DA-15B Auto/Manual Key Seater
![Used Hansford Davis Key Seater](https://i.machineryhost.com/b5b41fac0361d157d9673ecb926af5ae/9916992382d40c1091db88cab6008a21/large-used-hansford-davis-key-seater.jpg)
No longer available
Hansford Davis DA-15B Auto/Manual Key Seater
Location:VA
Description
Coolant Tank W/ Pump & Assortment of Tooling
Specifications
Manufacturer | Hansford Davis |
Model | DA-15B |
Year | 2015 |
Condition | Used |
Stock Number | 3589 |
Keyway Cutting Capacity | 1-16" - 1-1/2" (Steel) |
Throat Depth | From Face of 1" Cutter to Armpost 19"/With DA-60 Extra Throat Depth Assembly 22" |
Max. Work Height | Standard 12" / 18" With D-1701 Arm Post Option |
Max. Length Of Cut | 4" with 16" Long Cutter/ 8" With 20" Long Cutter/ 12" With 24" Long Cutter/ 18" With 30" Long Cutter |
Table Size | 20" x 31" |
Table Travel | 1-1/2" |
Stroke | 4-1/2" |
Strokes Per Min. | 11-56 With DA-27 Variable Speed Drive |
Motor | 2 HP |
Air Pressure Required | 80 PSI |
Approx. Machine Weight | 1,250 lbs |
