Geminis GHT 4 CNC Flat Bed Lathe
Geminis GHT 4 CNC Flat Bed Lathe
Contact us for price
Location:Belgium, WI
orCall 1-262-284-5611
Description

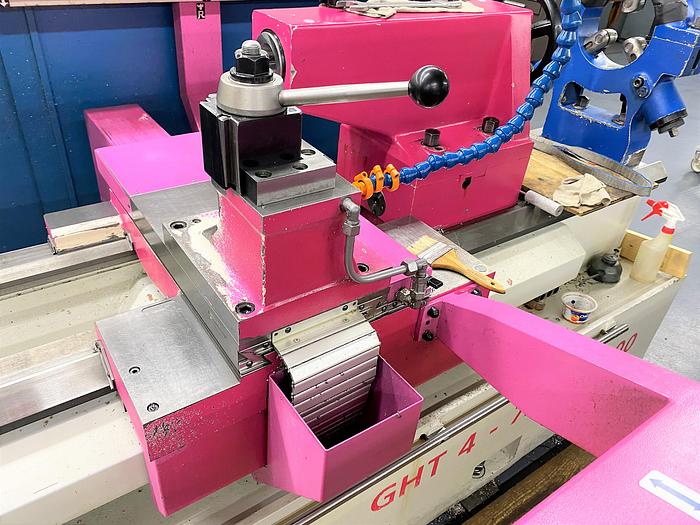

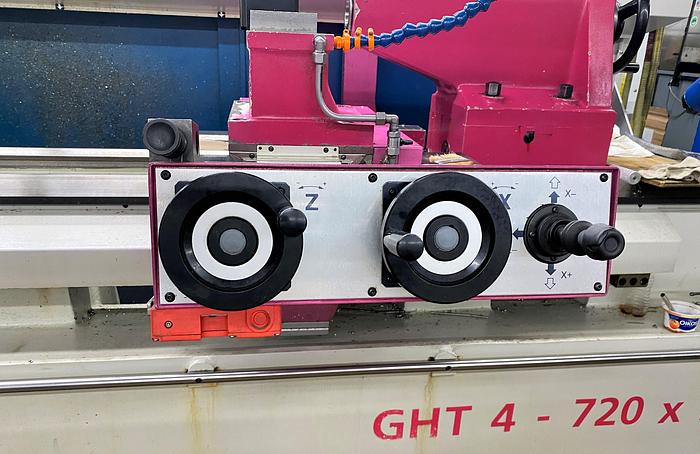

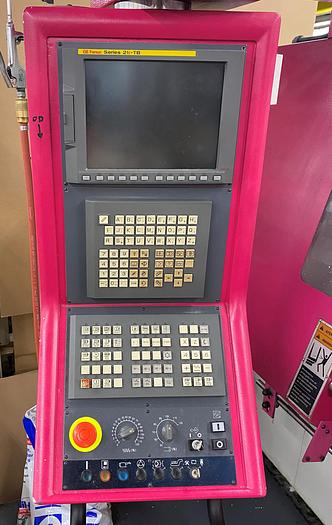

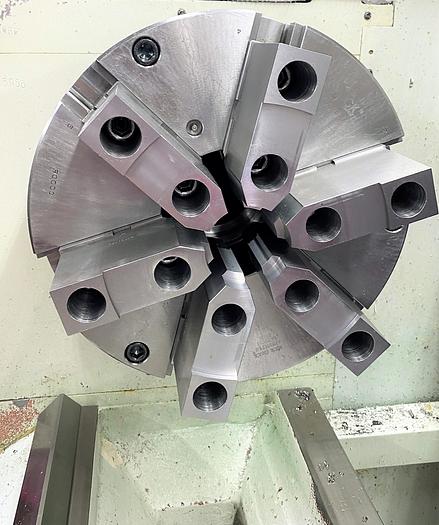

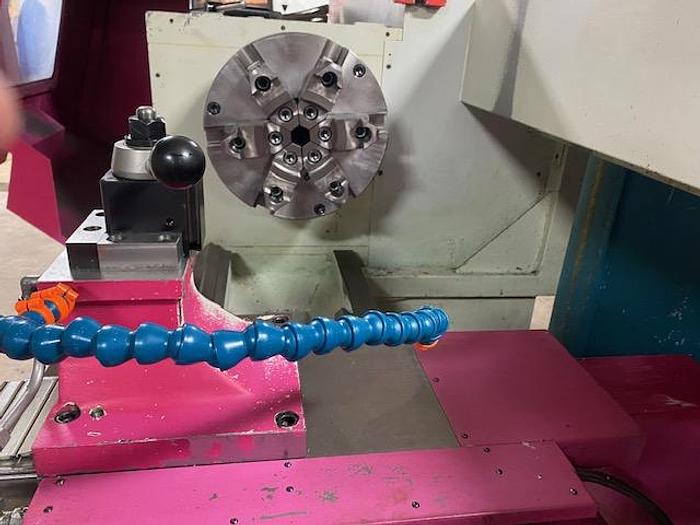

This machine is in our facility underpower for inspection and ready for production. Heavy duty way and tail stock system for mid size parts out of a one man tool room since new. Fanuc 21i-TB, 15" 6-Jaw Buck Chuck, Steady Rest, Tool Post, Back Splash Guarding, Coolant Tank, Manual Teach Hand Wheels
Specifications
| Manufacturer | Geminis |
| Model | GHT 4 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 3604 |
| Swing | 28.36" |
| Swing Over Cross Slide | 16.94" |
| Distance Between Centers | 78.8" |
| Spindle Bore | 4.09" |
| Spindle Motor | 22 HP |
| Max. Spindle Speed | 1,600 RPM |
| Spindle Ranges | 2 |
| Tailstock Quill Diameter | 3.94" |
| Tailstock Quill Travel | 7.8" |
| Tailstock Quill Taper | MT#6 |
| Machine Bed Width | 16.94" |
| Approx. Machine Dimensions | 180" x 90" x 75" |
| Approx. Machine Weight | 14,300 lbs |
| Aloris Tool Post | Type CX400 |
