GF Agie Charmilles Drill 20 CNC EDM Hole Drill
No longer available

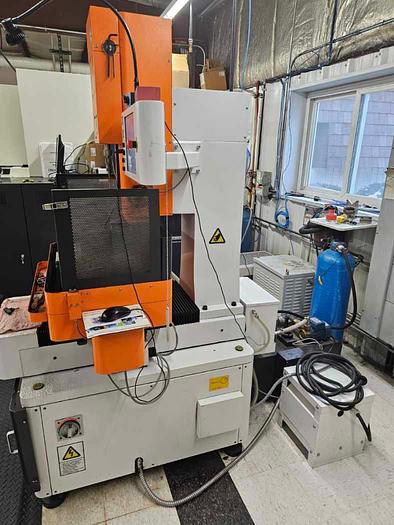

GF Agie Charmilles Drill 20 CNC EDM Hole Drill
$21,000 (USD)
Location:Belgium, WI
Description

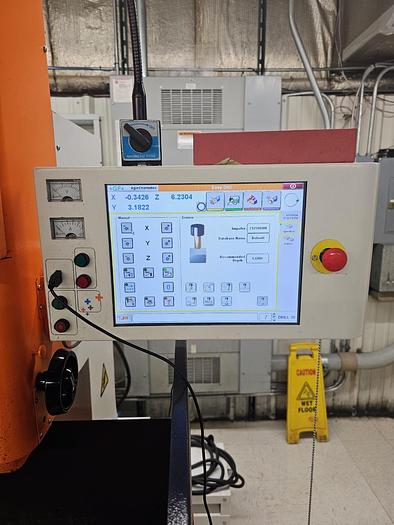

We appreciate your inquiry and hope we can answer all your questions. This machine is ready for production with a Windows Based CNC Control, Onboard Programming, Distilled Water/Dielectric Filtration System.This unit has had several updates (refurbished) and is ready for production.
Specifications
| Manufacturer | GF Agie Charmilles |
| Model | EDM Drill 20 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 3611 |
| X-Axis Travel | 11.8" |
| Y-Axis Travel | 11.8" |
| Z-Axis Travel | 11.8" |
| Table Size | 15.74" x 11.81" |
| Max. Work Piece Weight | 661 lbs |
| Max. Work Piece Height | 11.81" |
| Max. Drilling Depth | 7.87" |
| Hole Diameter | 0.118" /0.0118" |
| Electrode Range | 0.004" -0.12" |
| Approx. Machine Dimensions | 52.95" x 35.82" x 76.37" |
| Approx. Machine Weight | 1918 lbs Dry Weight |
