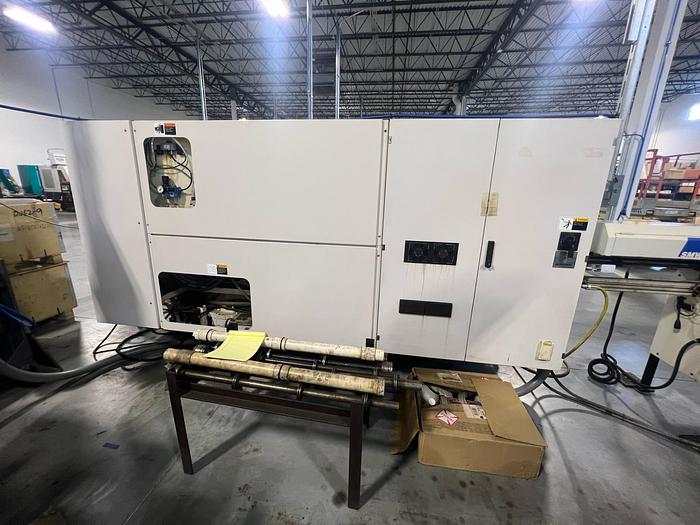

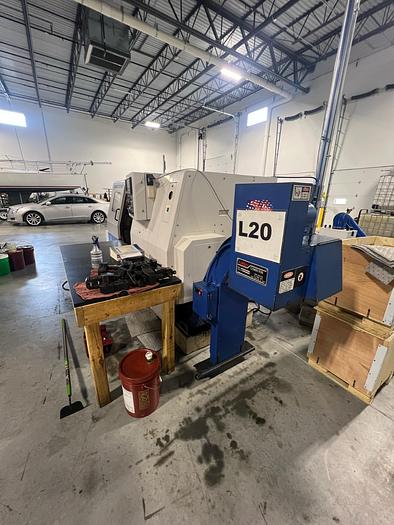

Daewoo Puma 250MSB CNC Lathe With Live Tooling
![Used Daewoo Puma 250MSB CNC Lathe With Live Tooling](https://i.machineryhost.com/b5b41fac0361d157d9673ecb926af5ae/e035024dffa1612a572465fd1fff9965/large-used-daewoo-puma-250-msb-cnc-lathe-with-live-tooling.jpg)
No longer available
Daewoo Puma 250MSB CNC Lathe With Live Tooling
Location:Wisconsin
Description

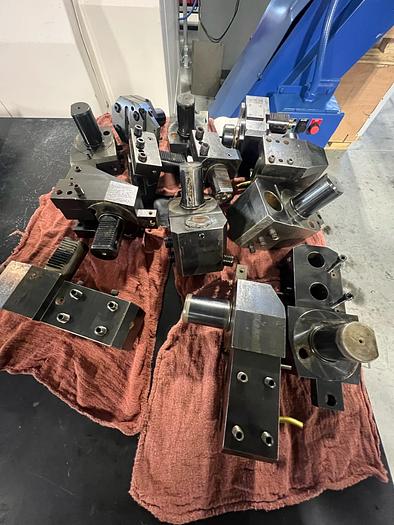

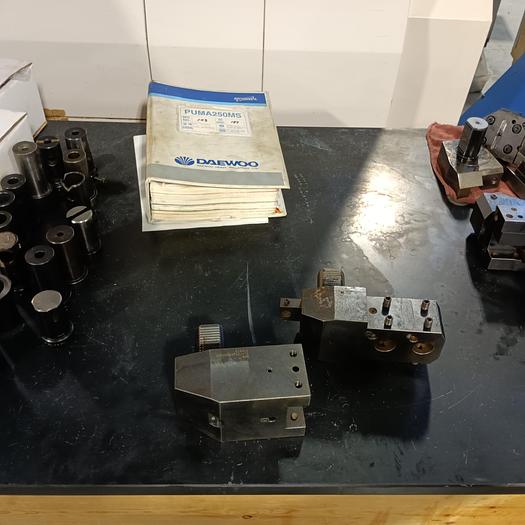

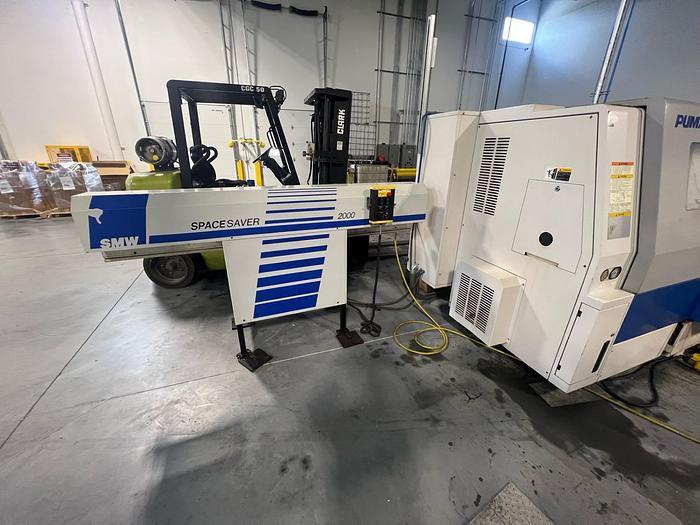

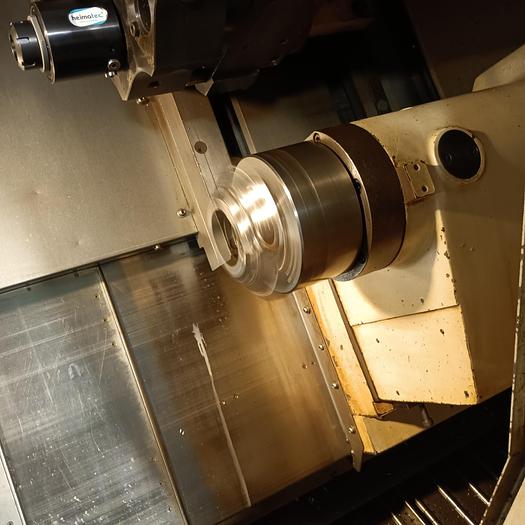

Fanuc 18T controls, Parts catcher, 10” chuck on main spindle, 6” chuck on sub spindle, Turbo Chip conveyor, SMW Space Saver 2000, Magazine bar feeder, Loaded with tooling, Boxed ways, Coolant, On Hours: 25,801, Cut hours are generally 25% of the On hours, so approximately: 6,450 Cut hours
Specifications
Manufacturer | Daewoo |
Model | 250MSB |
Year | 1997 |
Condition | Used |
Stock Number | 3615 |
Swing Over Bed | 22.4" |
Swing Over Saddle | 14.6" |
Max. Turning Length | 51.18" |
Max. Turning Diameter | 13.97" |
X-Axis Travel | 11" |
Z- Axis Travel | 23.8" |
C- Axis Travel | 0.001 Degree |
B-Axis Travel | 26.8" |
Rapid Traverse Rate X & Z & Sub | 745/945/800 IPM |
Spindle Nose | A2-8 |
Spindle Bore | 3.54" |
Bar Capacity | 3.03" |
Spindle Speed Main/Sub | 3,500 RPM / 4,000RPM |
Spinlde Motor Main/Sub | 30HP/10 HP |
Live Tool Spindle Speed | 4,000 RPM |
Live Tool Motor | 7.5 HP |
Tailstock Quill Taper | MT#5 |
Tailstock Quill Diameter | 3.94" |
Tailstock Stroke | 3.94" |
Approx. Machine Dimensions | 152" x 69" x 71" |
Approx. Machine Weight | 14,800 lbs |
