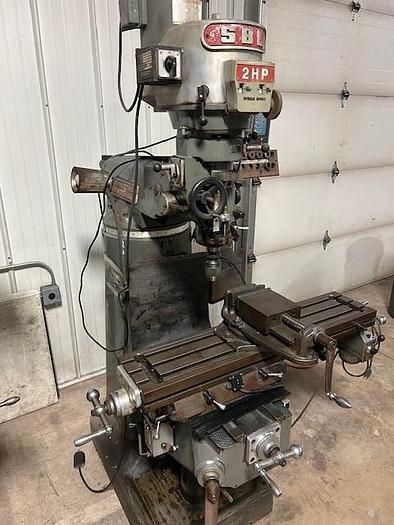

South Bend Universal Knee Mill
South Bend Universal Knee Mill
Contact us for price
Location:Belgium, WI
orCall 1-262-284-5611
Description

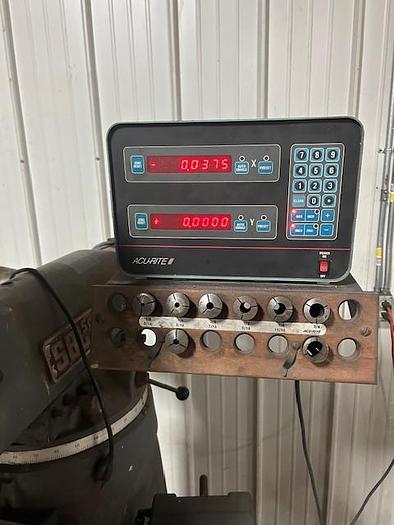

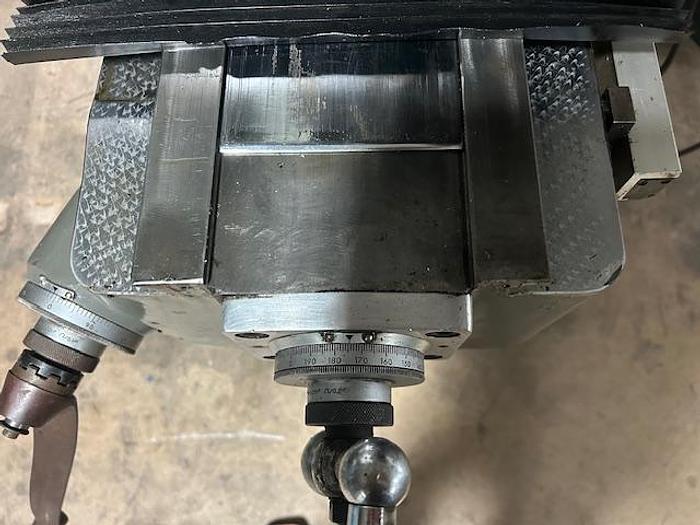

Acu-Rite 111 D.R.O, Table Vise, Chromed and Scraped Ways, Acu-Rite Scales, One Shot Lube System
Specifications
| Manufacturer | South Bend |
| Model | 2 VSC 42 |
| Year | 1988 |
| Condition | Used |
| Stock Number | 3629 |
| Table Size | 42" x 9" |
| X-Axis Travel | 23.5" (29.5" W/O Power Feed) |
| Y-Axis Travel | 13" |
| Vertical Knee Travel | 16" |
| Ram Tavel In/Out | 13" |
| Ram Swivel | 180 Degree |
| Head Swivel L/R | 90 Degree |
| Head Swivel F/R | 45 Degree |
| Spindle Taper | R8 |
| Spindle Speeds Variable Speed | 500-4,200 RPM |

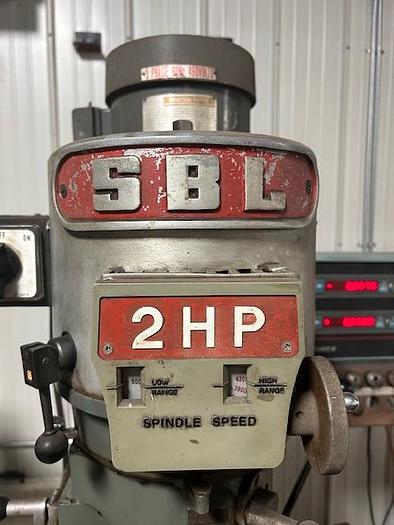

| Spindle Motor | 2 HP |
| Max. Table Load Capacity | 750 lbs |
| Approx. Machine Weight | 2130 lbs |

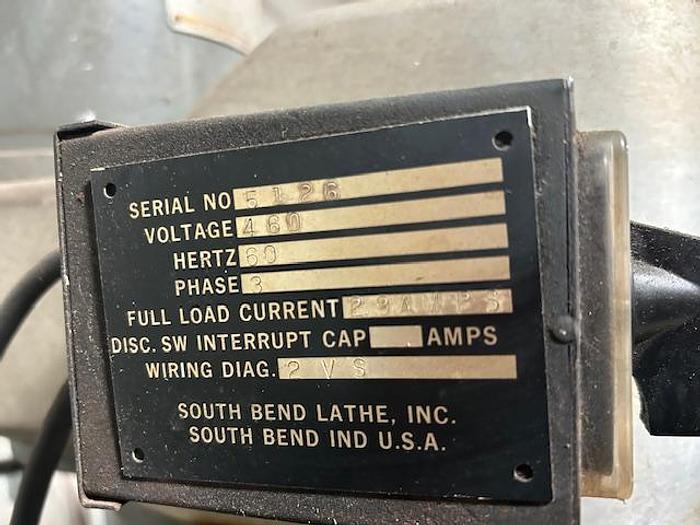

| Machine Electronics | 460V/3ph/60hz |
