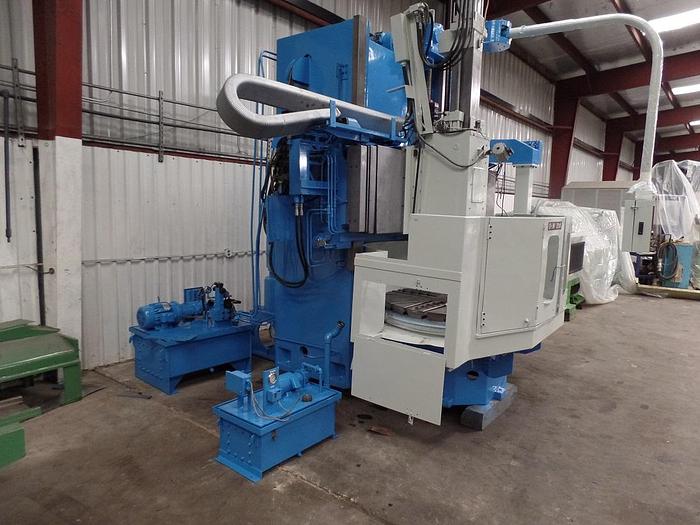

O-M VT5-12N CNC Vertical Turret Lathe
O-M VT5-12N CNC Vertical Turret Lathe
Contact us for price
Location:Texas
orCall 1-262-284-5611
Description

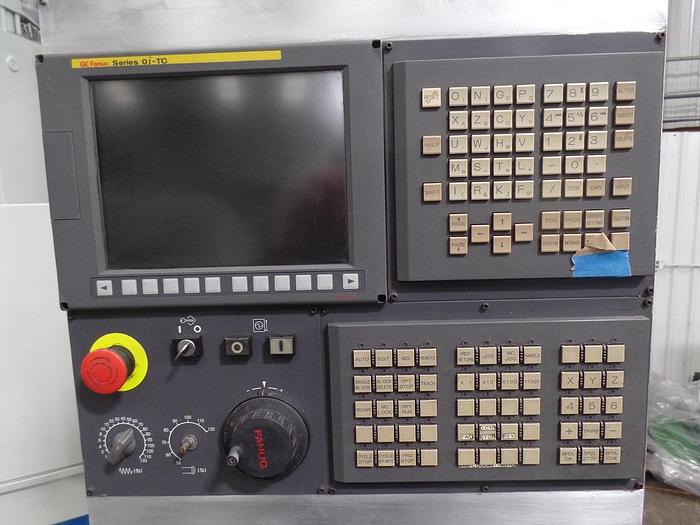

Equipped with: Retrofit Fanuc Oi-TC
Dimensions:
Main body: 11’ H x 12’ W x 10’ L.
Transformer: 36” H x 27” W x 24” L.

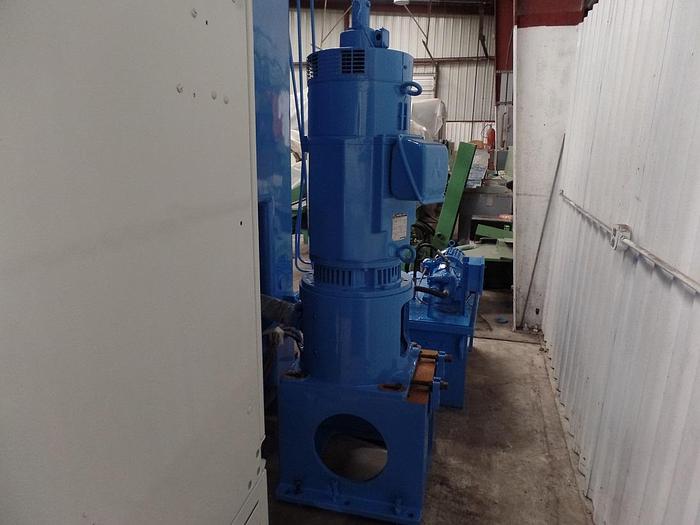

Main motor: 77” H x 24” W x 24” L.
Hydraulic unit: 36” H x 40” W x 30” L.
Coolant tank: 36” H x 44” W x 18” L
Specifications
| Manufacturer | O-M |
| Model | VT5-12N |
| Condition | Used |
| Stock Number | 3631 |
| Table Diameter | 49.25" |
| Max. Turning Diameter | 53" |
| Max. Swing | 63" |
| Max. Turning Height With Standard Tool Holder | 49.25" |
| Max. Workpiece Weight | 17,600 lbs |
| Vertical Ram Travel | 35.5" |
| Ram Size | 7.0" x 7.0" |
| ATC Magazine Capacity | 12 ATC |
| Rapid Feed Rate X/Z | 393 IPM |
| Vertical Travel of Cross Rail | 31.5" |
| Table Speed (2 Variable Speed) | 2.0 -350 RPM |
| Spindle Motor | 45/40 HP |
| Approx. Machine Weight | 43,000 lbs |
