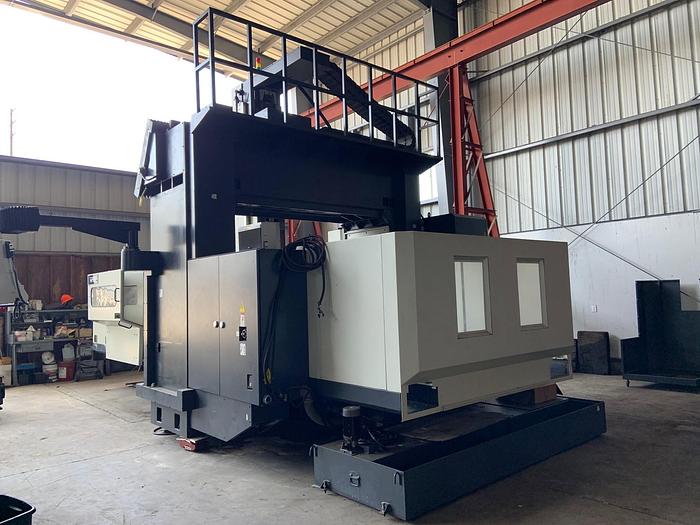

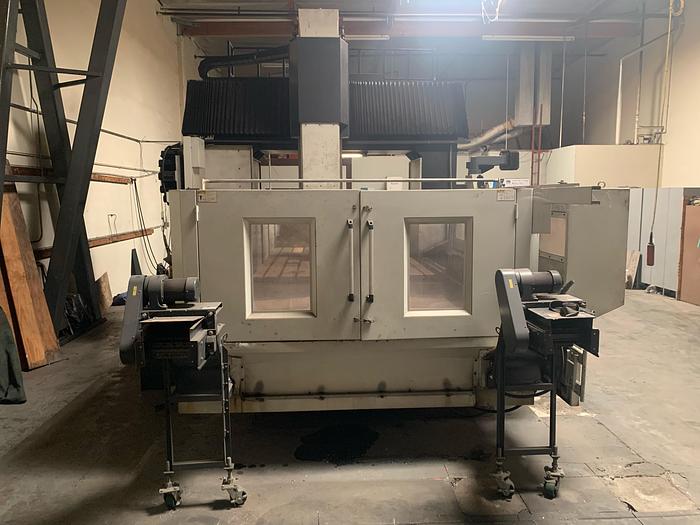

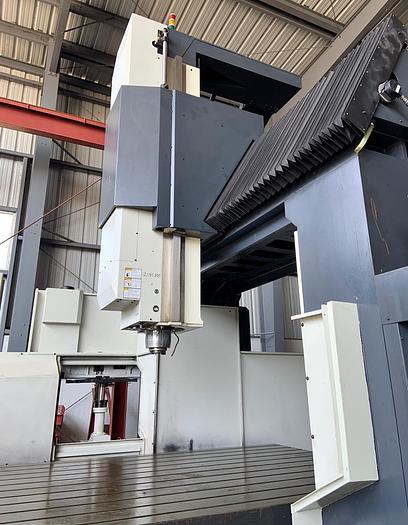

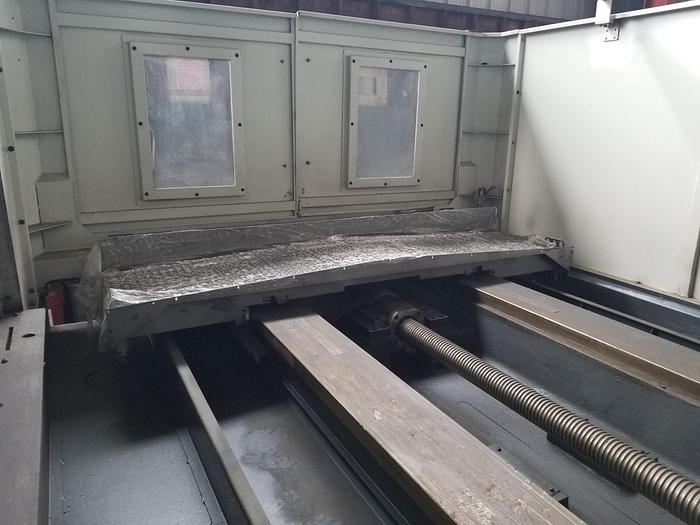

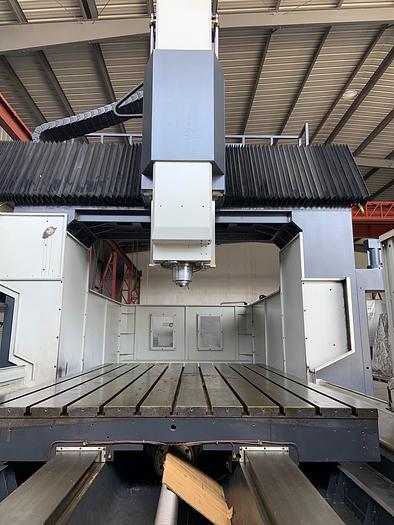

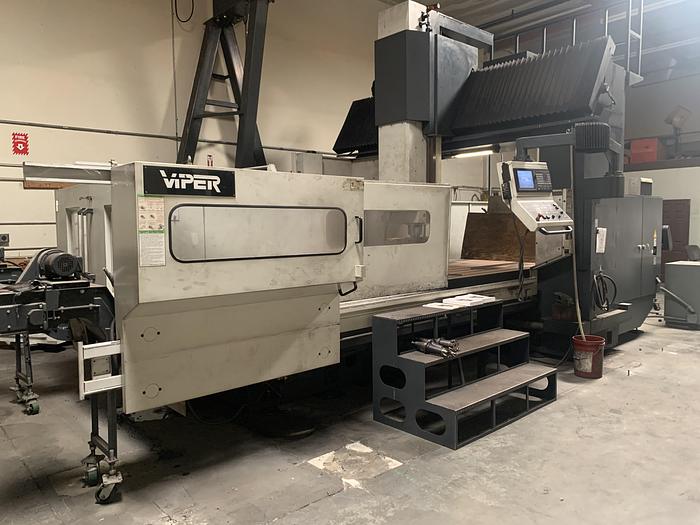

Mighty Viper DZ-3240 CNC Bridge Mill
Mighty Viper DZ-3240 CNC Bridge Mill
Contact us for price
Location:California
orCall 1-262-284-5611
Description

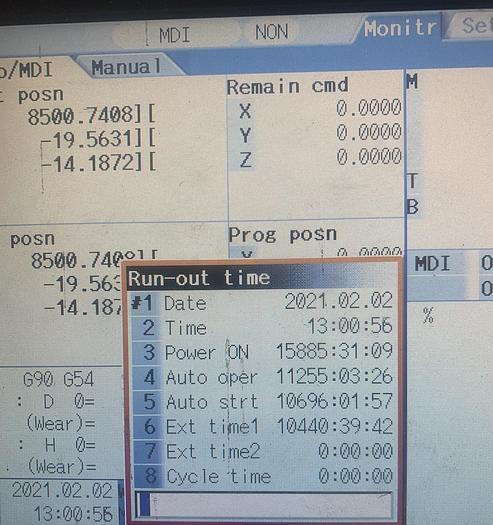

Mitsubishi M730 CNC Control, 11,500 running hours, Full splash guarding, Heavy duty box ways, Spindle chiller, Coolant System, MPG, Absolute end-coders on all 3 axes, Foot switch for spindle clam/unclamp, Spindle air nozzle, Spindle side coolant nozzle, Air blow thru spindle, RS-232 interface, Rigid Tapping, Heat ex changer in electrical cabinet, operation manual, Leveling blocks and bolts, In GOOD condition.
Specifications
| Manufacturer | Mighty Viper |
| Model | DZ-3240 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 3632 |
| Table Size | 126" x 80.3" |
| Max. Table Load Capacity | 24,250 lbs |
| X-Axis Travel | 120" |
| Y-Axis Travel | 94.5" |
| Z-Axis Travel | 42.1" |
| Distance From Spindle End To Table | 15.4" - 57.5" |
| Distance Between Columns | 98.8" |
| Spindle Taper | CT #50 |
| Spinlde Speed | 6,000 RPM |
| Spindle Motor | 30 HP |
| Rapid Feedrate X, Y & Z | 394 IPM |
| Cutting Feed Rate | 197 IPM |
| Tool Storage Capacity | 40 ATC |
| Max. Tool Weight | 44 lbs |
| Max. Tool Length/ Diameter | 13.8"/5.1" |
| Electronics | 220Volt/3ph/61 Kva |
| Compressed Air Required | 90 PSI |
| Floor Space | 34' 6" x 21' 8" |
| Approx. Machine Weight | 97,000 lbs |
