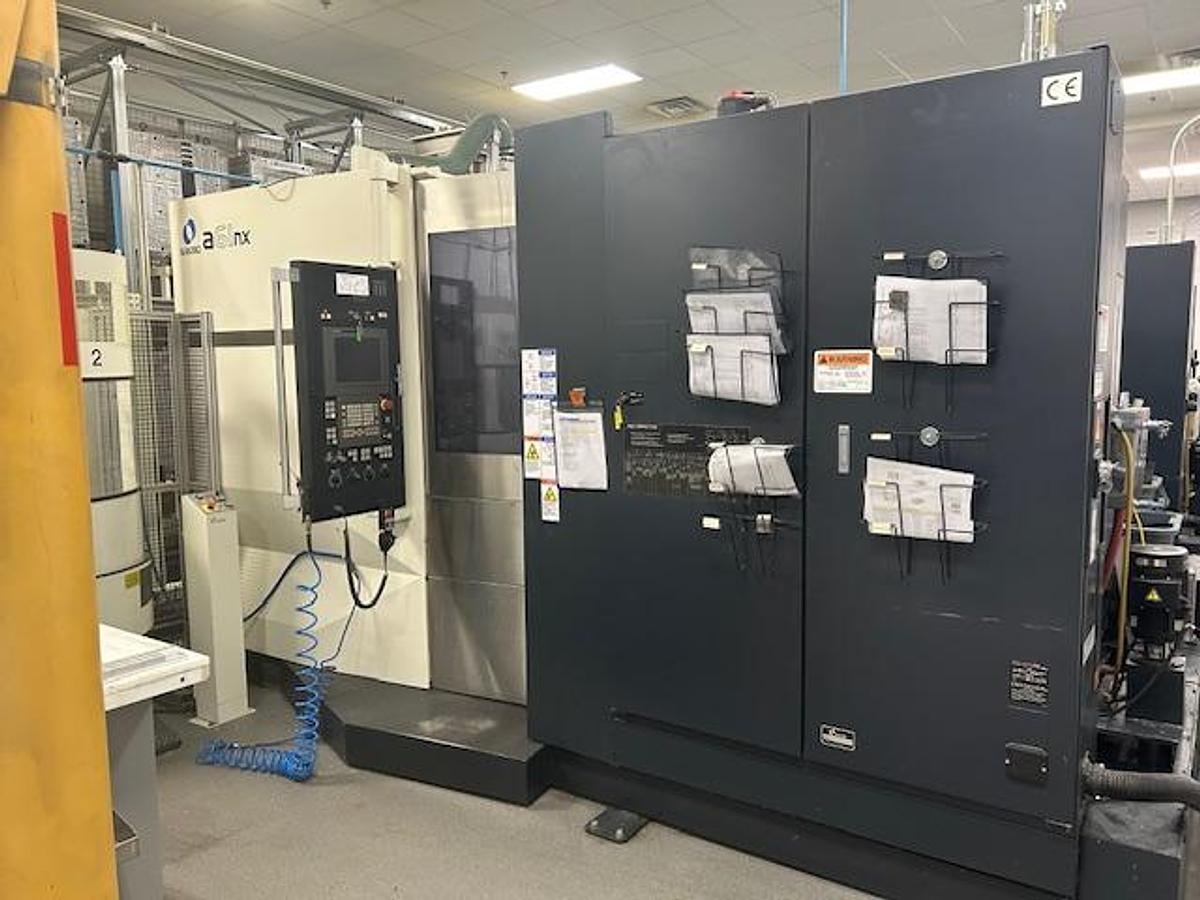

Makino a61 nx 4-Axis CNC Horizontal Machining Center Cell
Makino a61 nx 4-Axis CNC Horizontal Machining Center Cell
Contact us for price
Location:Wisconsin
or
Call 1-262-284-5611
Description

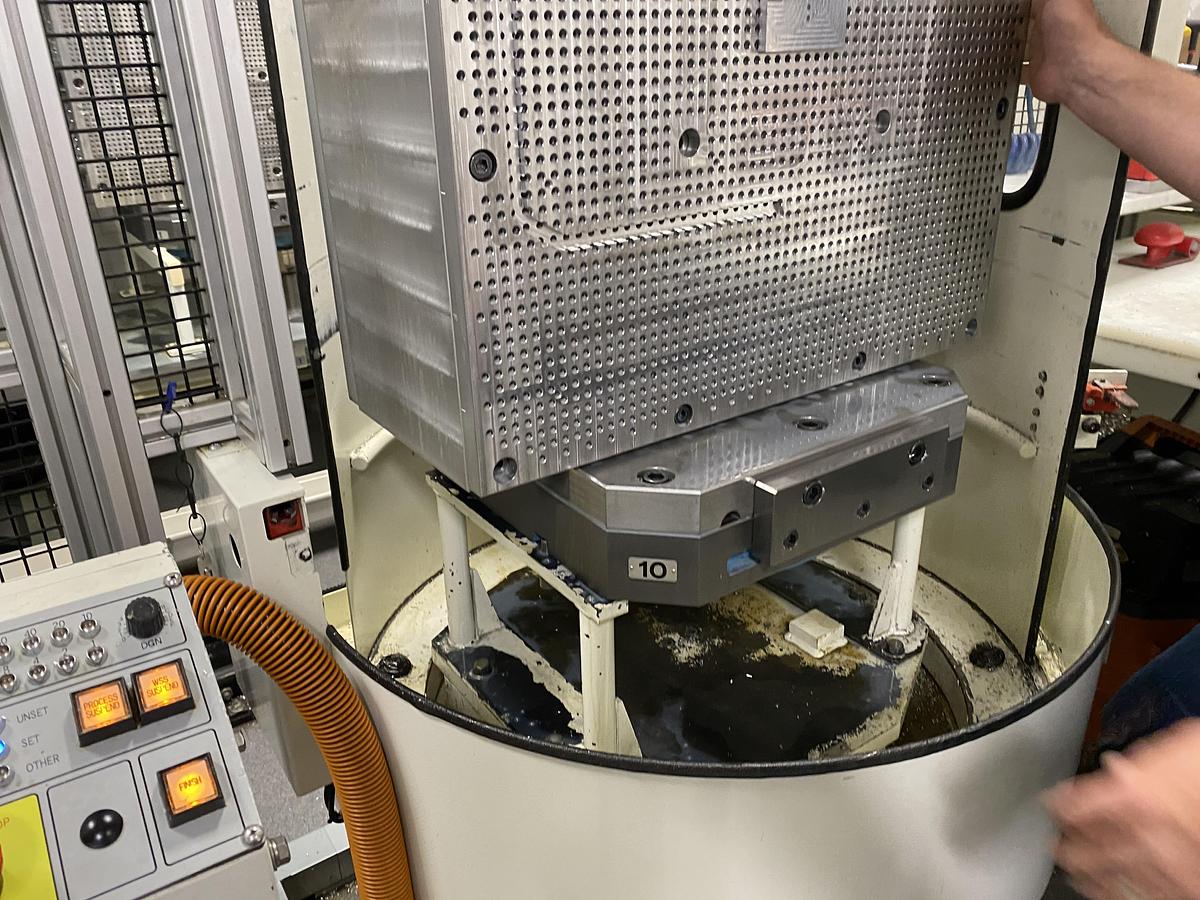

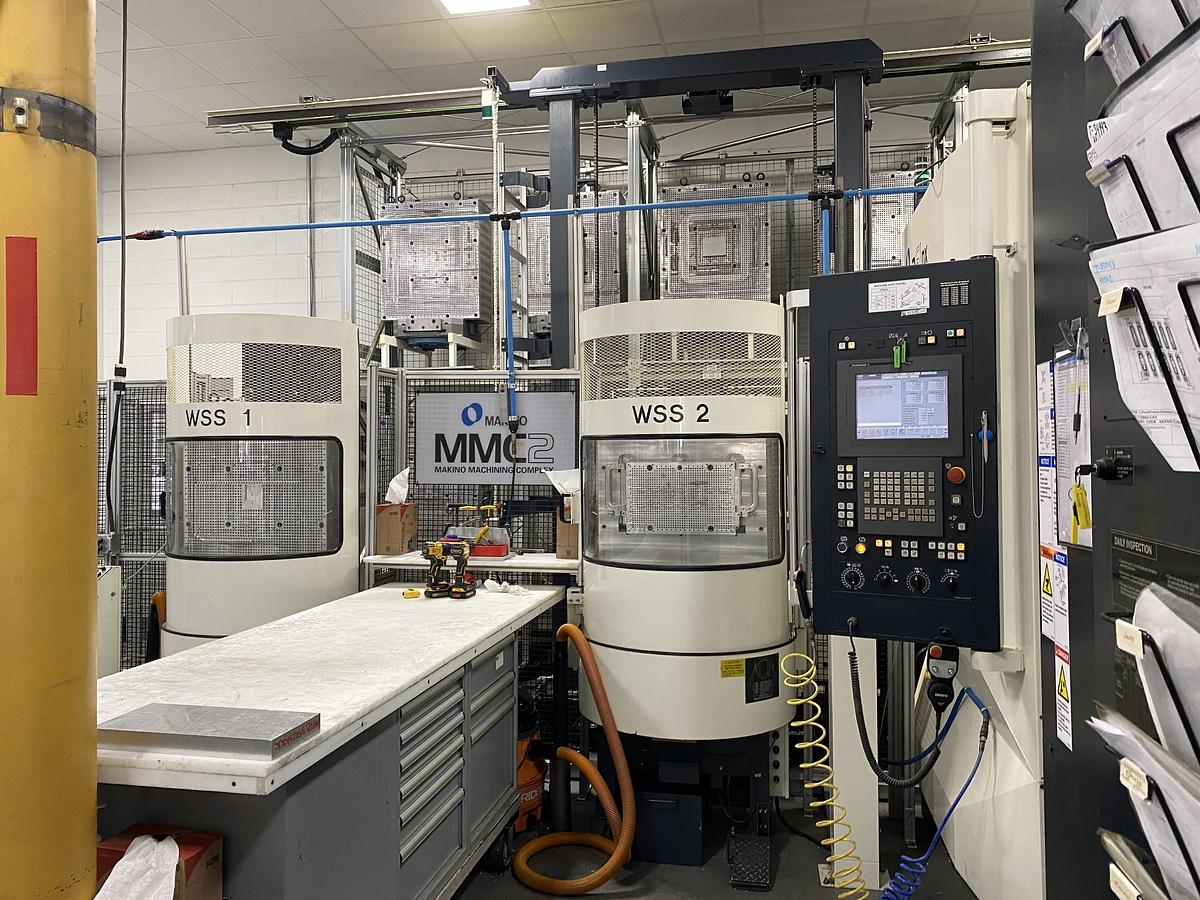

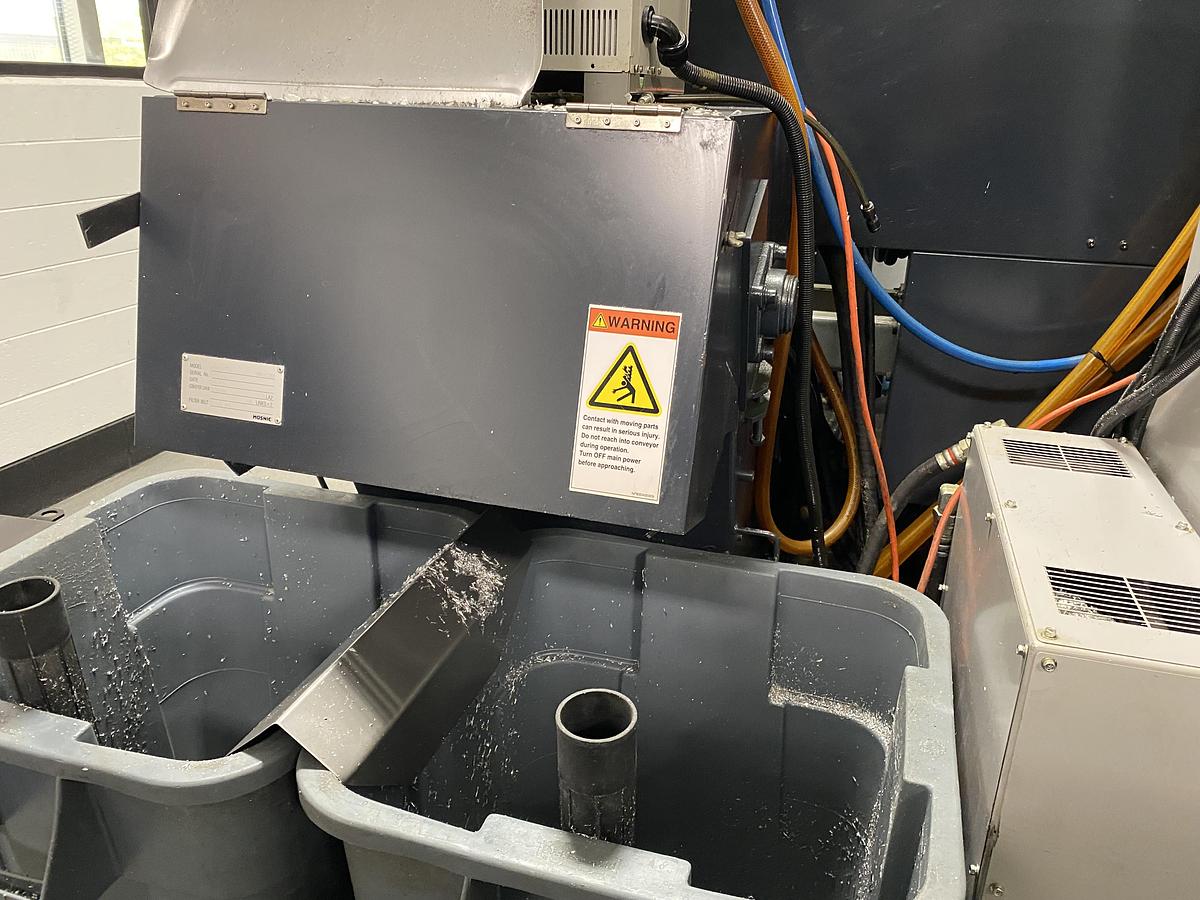

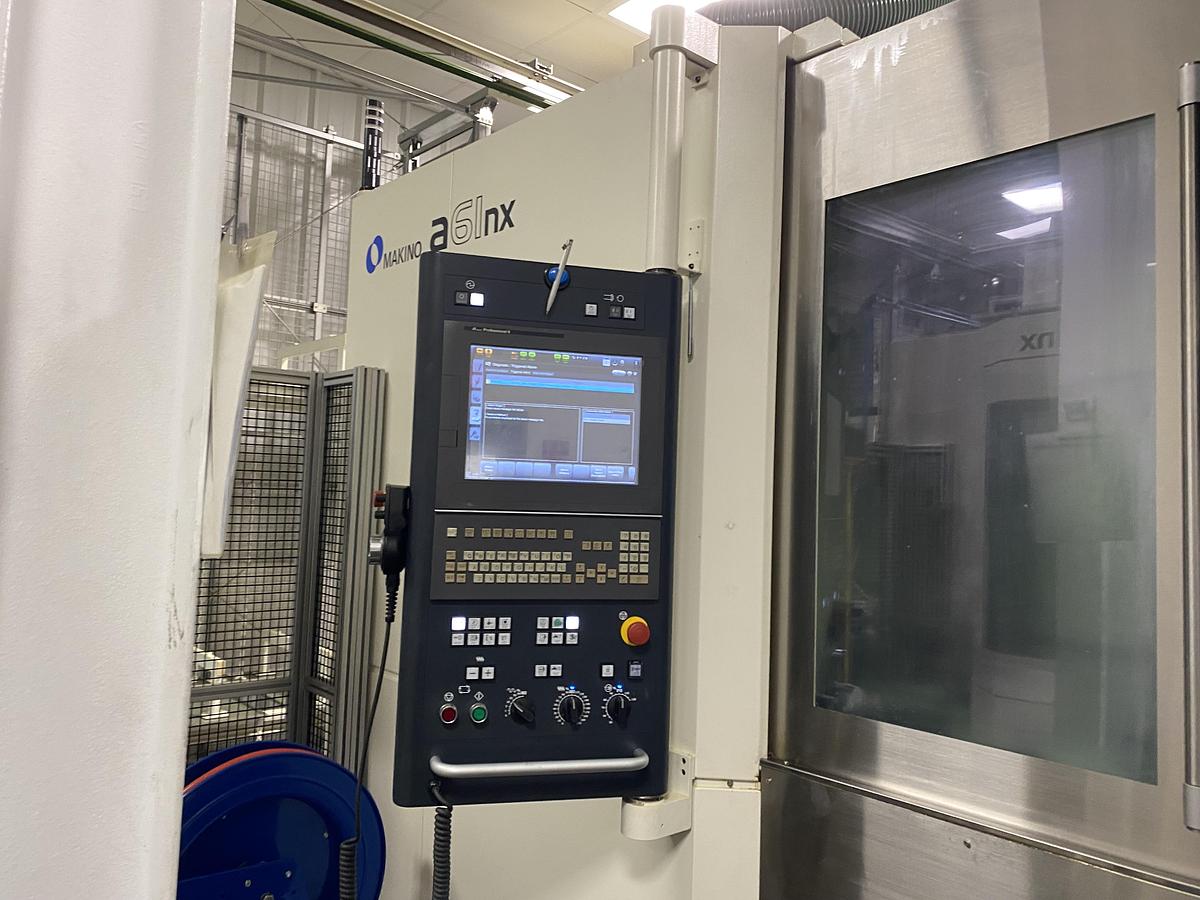

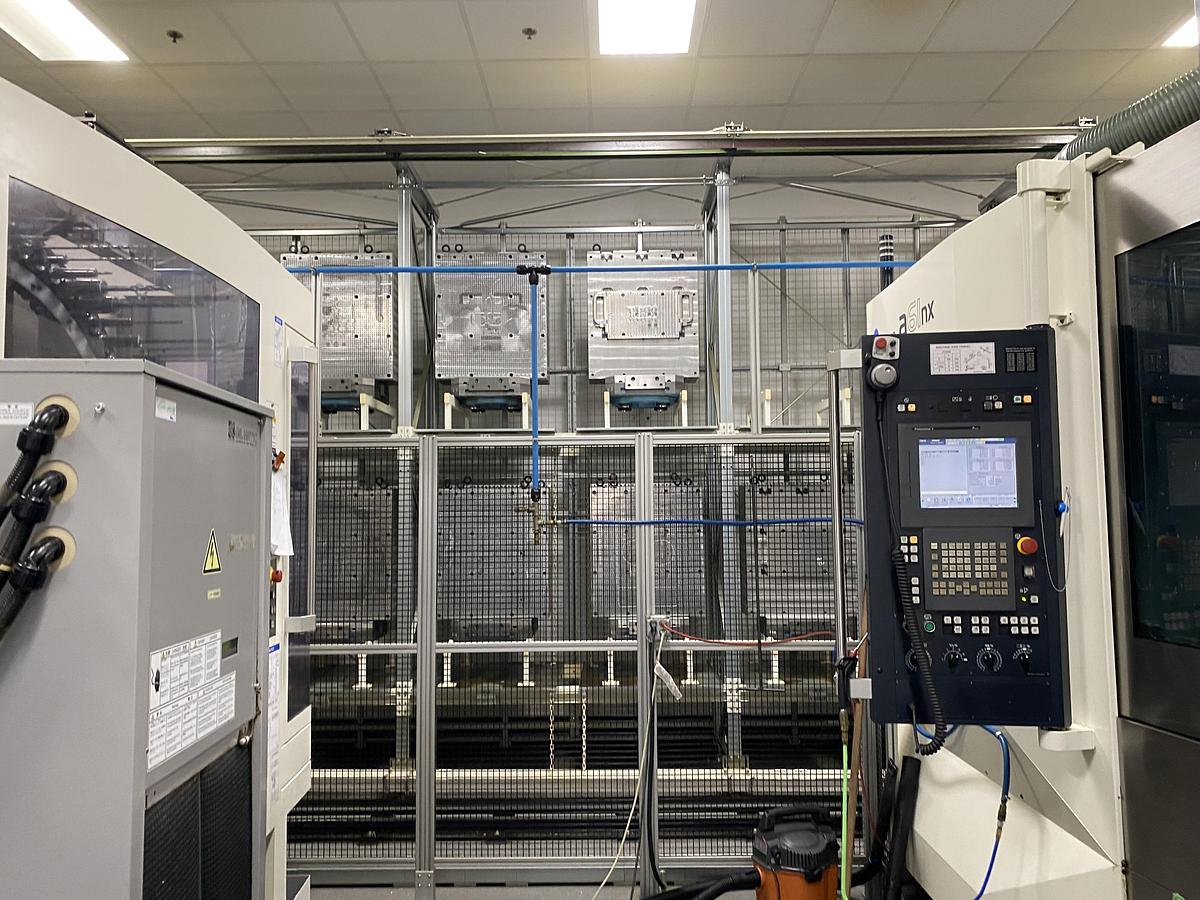

(3) Three Makino a 61nx horizontal machining centers with one multi pallet system, MMC 2, with Pro 5 cnc Control, 40 Pallet Rack Cell with two load/unload stations, all pallet fixtures are included, no tooling available, Lift Up Chip Conveyor, regular maintenance performed by Makino service to keep the machines in top performing condition.
Specifications
| Manufacturer | Makino |
| Model | a61 nx |
| Year | 2016 |
| Condition | Used |
| Stock Number | 3639 |
| Pallet Size | 19.68" x 19.68" |
| Max. Work Piece | 31.49" x 39.37" |
| X-Axis Travel | 28.74" |
| Y-Axis Travel | 25.59" |
| Z-Axis Travel | 31.49" |
| B-Axis Rotary | 360 Degree |
| Spindle Taper | HSK-A63 |
| Spindle Speed | 20,000 RPM |
| Spindle Motor | 50HP |

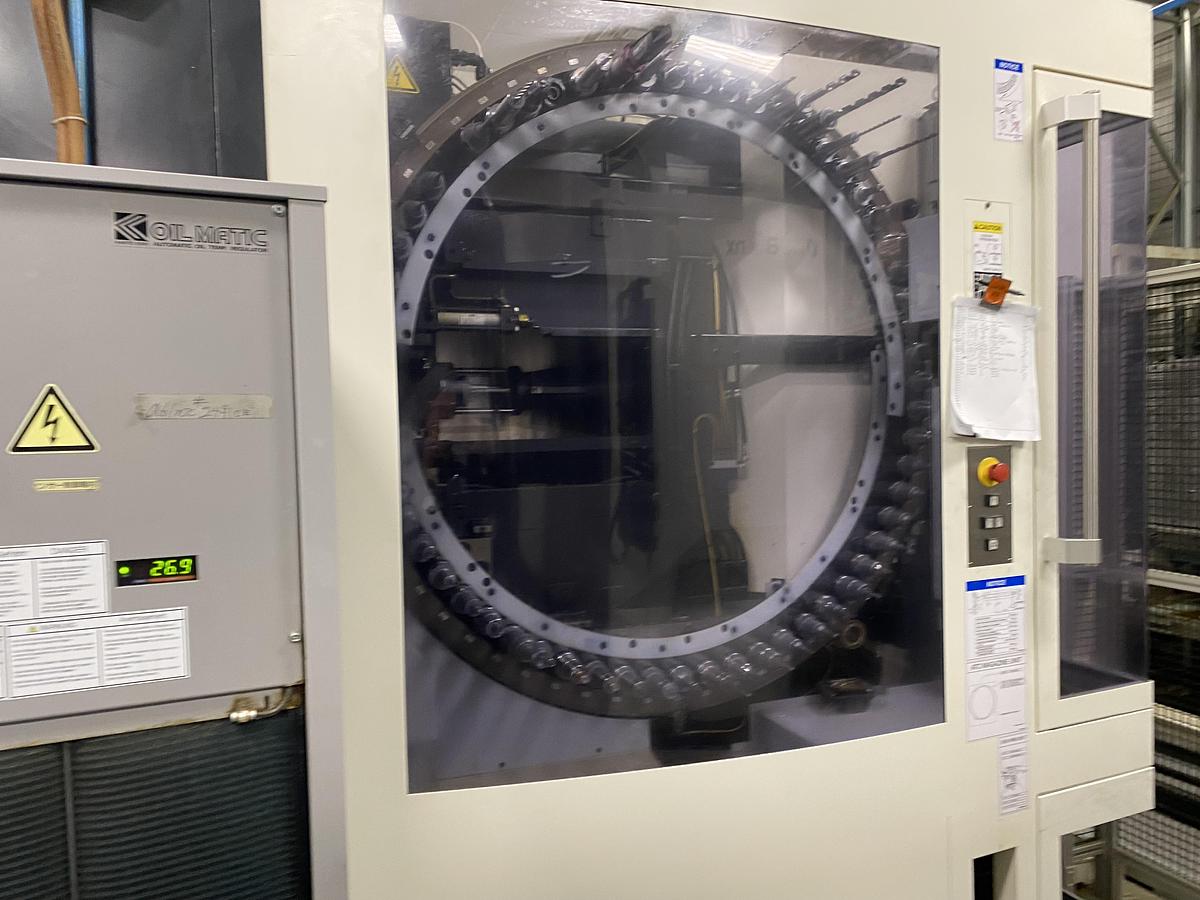

| ATC Capacity | 60 ATC |
| Chip To Chip Time | 2.5 Sec. |
| Max. Tool Diameter | 8.07" |
| Max. Tool Weight | 26.4 lbs |
| Cutting Feed Rate | 1,968 IPM |
| Rapid Traverse Rate X, Y & Z | 2,362 IPM |
