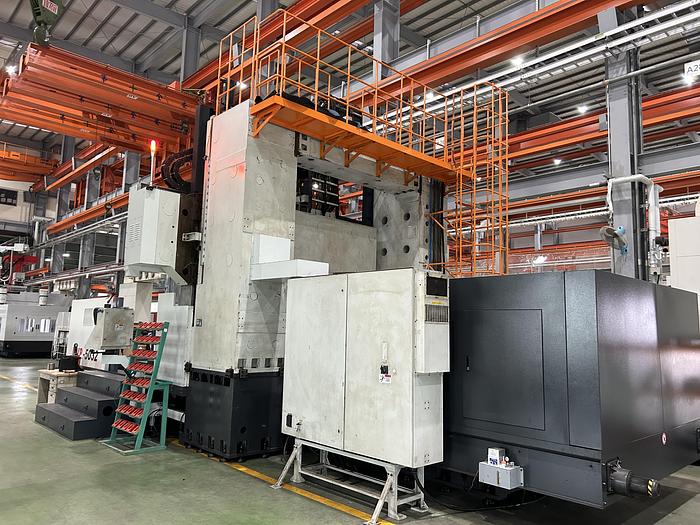

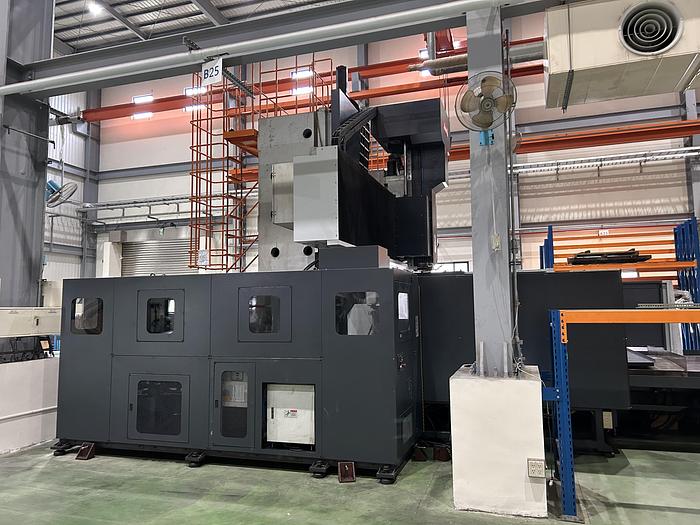

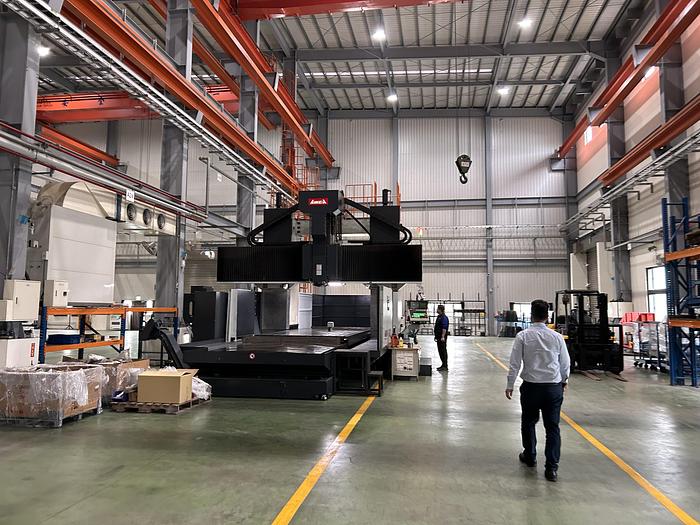

Awea MVP 5032 Vertical Bridge Mill
Awea MVP 5032 Vertical Bridge Mill
Contact us for price
Location:Belgium, WI
or
Call 1-262-284-5611
Description
Fanuc Oi, Complete Factory Reconditioned Including removing Ball screws, Replaced Spindle with new, Cleaned and Cycled, Coolant Tank, Lift Up Chip Conveyor, Auto Pick up Right Angle Attachment With Auto Head Changer.
Specifications
| Manufacturer | Awea |
| Model | MVP5032 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 3642 |
| Table Size | 197.63" x 94.48" |
| X- Axis Travel | 196.85" |
| Y-Axis Travel | 125.98" |
| Z-Axis Travel | 39.37" |
| W-Axis Travel | 49.21" |
| Distance Between Columns | 106.29" |
| Distance From Spindle Nose To Table Top | 7.87" -96.45" |
| Spindle Speed | 4,500 RPM |
| Spindle Taper | BT#50 |
| Spindle Motor | 29.5/34.87 HP |
| ATC Capacity | 60 ATC |
| Max. Tool Length | 15.74" |
| Max. Tool Weight | 44 lbs |
| Power Requirements | AC 220/3Ph/80 kva |
| Approx. Machine Weight | 75,000 lbs |
