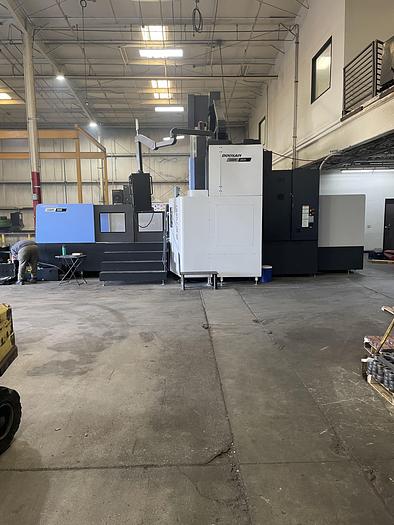

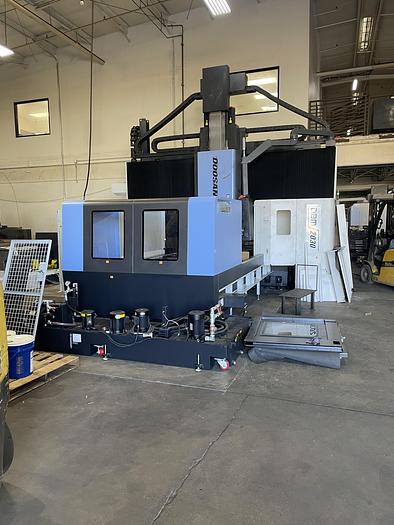

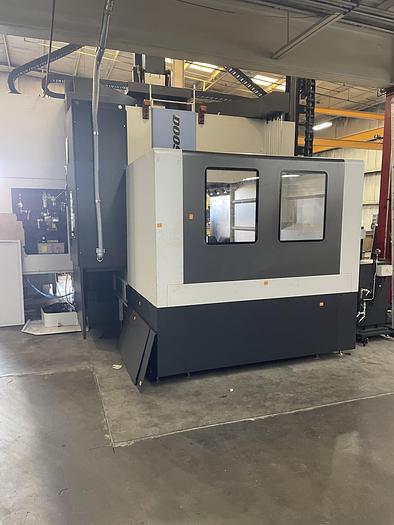

Doosan DN Solutions DBM2030 Double Column Vertical Machining Center

Doosan DN Solutions DBM2030 Double Column Vertical Machining Center
Contact us for price
Location:United States
or
Call 1-262-284-5611
Description

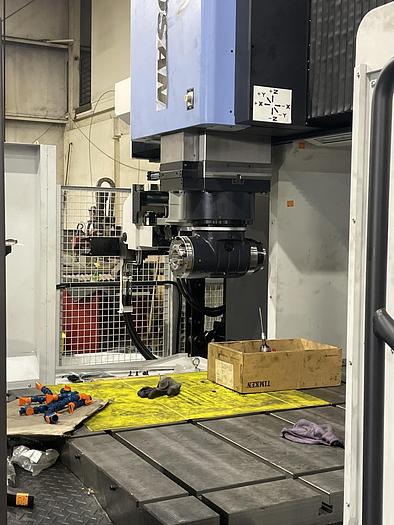

Fanuc 31iB CNC, Right Angle Milling Head, Dual Chip Conveyors, Probe, Swing in AAC 2 Station, TSC/TSA Switchable, Renishaw Auto Tool Length Measuring with Master Renishaw Part Probe with Calibration Block, Auto Power On, Purchased new in 2021 Installed 2022.
Multi-purpose double column machining center. The DBM series comprises multi-purpose double-column machining centers without W-axes for applications such as the heavy duty machining of large parts and high precision dies and molds. Designed with the highest specifications in its class, the DBM series is renowned for its broad range of machining capabilities, its range of optional equipment and an array of convenient functions for the operator.
Specifications
Manufacturer | Doosan |
Model | DBM2030 |
Year | 2022 |
Condition | Used |
Stock Number | 3643 |
X- Axis Travel | 128" |
Y-Axis Travel | 98.4" |
Z-Axis Travel | 31.5" |
C-Axis | 0-360 Degree/1 Degree Increments |
Distance Between Columns | 98.4" |
Distance From Spindle Nose To Table Top | 7.87"-39.4" |
Table Size | 118" x 59" |
Table Load Capacity | 26,400 lbs |
Spindle Speed | 8,000 RPM |
Spindle Motor | 73.8 HP |
Max. Torque | 744.6 ft/lbs |
Ram Size | 14.96" x 14.96" |
Tool Changer Capacity | 60 ATC |
Spindle Taper | BBT #50 |
Max. Tool Diameter | 5.1" |
Max. Tool Length | 15.7" |
Max. Tool Weight | 66 lbs |
Rapid travese Rate X & Y | 787 IPM |
Rapid Traverse Rate Z | 590 IPM |
Cutting Feed Rate X/Y & Z | 394 IPM |
Approx. Machine Weight | 70,400 lbs |
Power Required | 220/3ph/60 |
Approx. Machine Dimensions | 346" x 273" x 224" |
