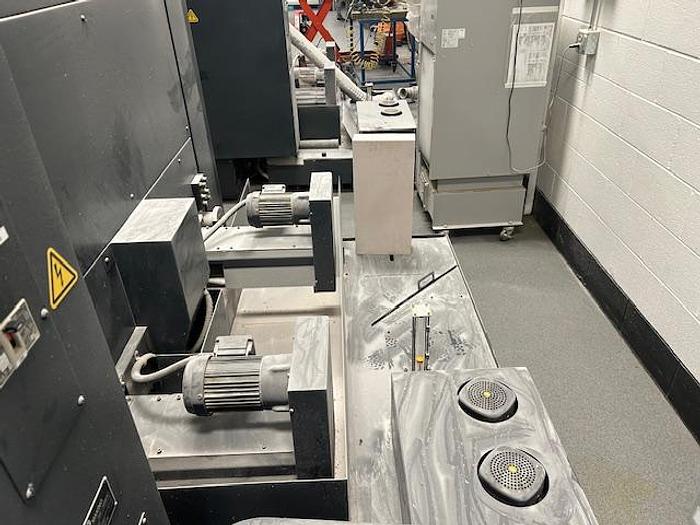

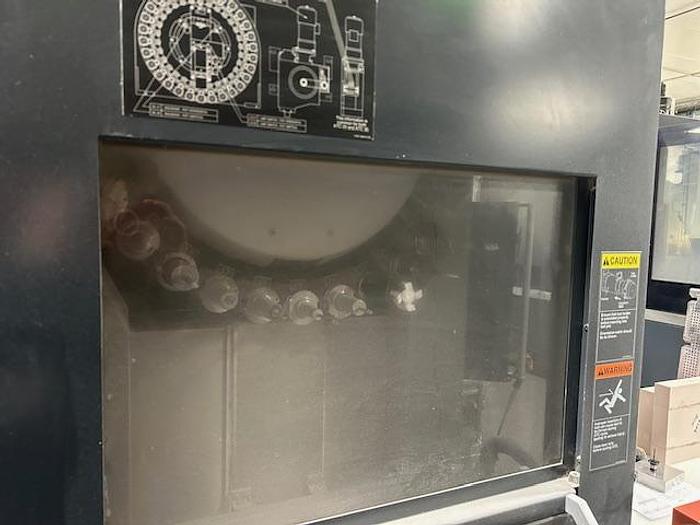

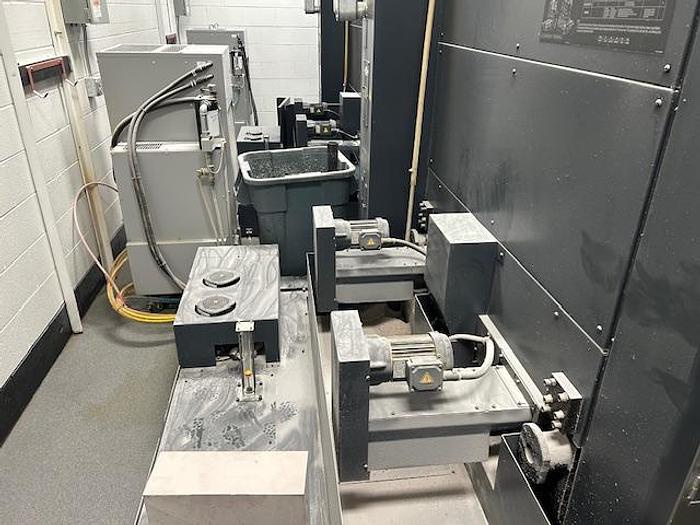

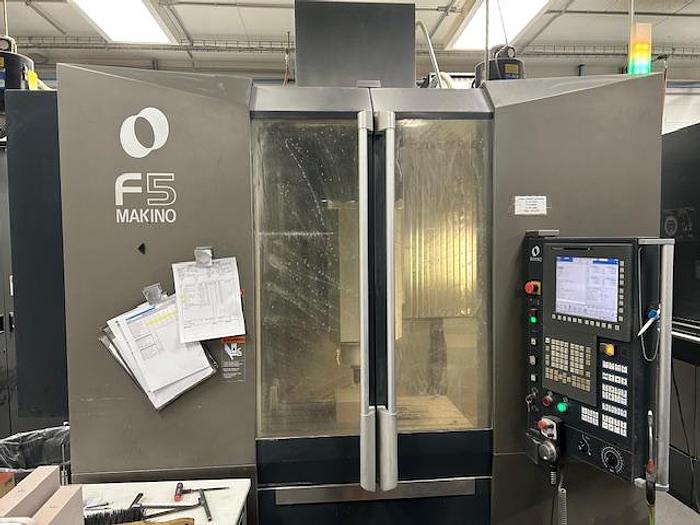

Makino F5 CNC Vertical Machining Center
Makino F5 CNC Vertical Machining Center
Contact us for price
Location:Wisconsin
or
Call 1-262-284-5611
Description

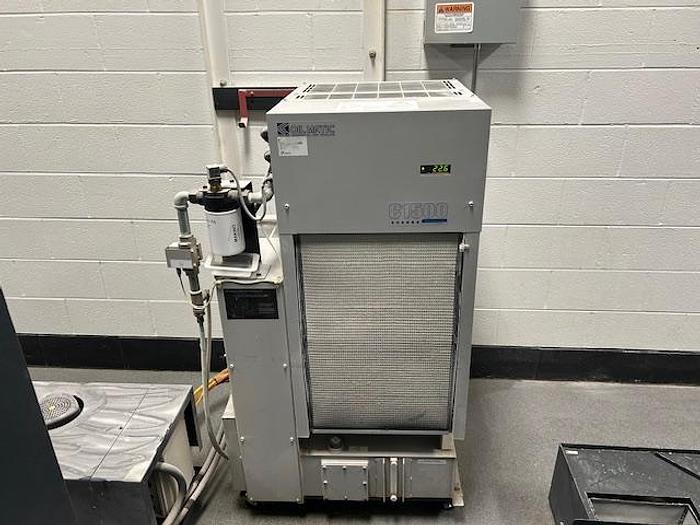

Pro 5 CNC Control, 11,444hours, Coolant Tank, Spindle Chiller, Rigid Tap, Scale Feedback on X, Y & Z, Super Geometric Intelligence (SGI.4),Helical Interpolation, Programming Data Input (G10), Tool Offset Pairs (64 Total), Tool Offset Memory C, Cutter Compensation C, Maintenance Advice System (MA), Tool Life Monitoring (TLM)
F5 vertical machining center is designed to provide stiffness and rigidity for chatter-free cutting, agility expected from a hard milling machine and accuracies for tight-tolerance blends and matches typical of complex, 3-D contoured geometry associated with die/mold and medical production.
Specifications
| Manufacturer | Makino |
| Model | F5 |
| Year | 2018 |
| Condition | Used |
| Serial Number | V151262 |
| Stock Number | 3645 |
| Table Size | 39.4" x 19.7" |
| Max. Table Load Capacity | 2,204 lbs |
| X- Axis Travel | 35.4" |
| Y-Axis Travel | 19.7" |
| Z Axis Travel | 17.7" |
| Spindle Speed | 20,000 RPM |
| Spindle Taper | HSK-A63 |
| Rapid Traverse Rate | 787 IPM |
| Cutting Feed Rate | 787 IPM |
| Auto Tool Change Capacity | 30 ATC |
| Max. Tool Diameter | 4.72" |
| Max. Tool Weight | 17.6 lbs |
