Makino F9 CNC Vertical Machining Center
Makino F9 CNC Vertical Machining Center
Contact us for price
Location:Wisconsin
or
Call 1-262-284-5611
Description

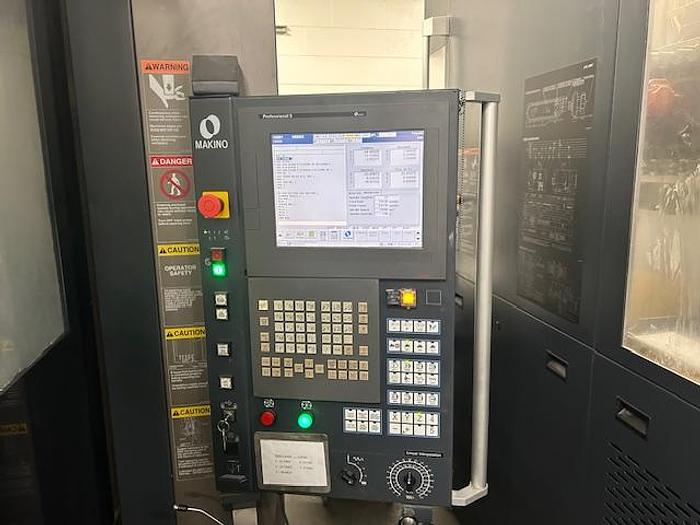

Pro 5 Control (Fanuc 31i), Chip Conveyor, Linear Interpolation, Circular Interpolation, Helical Interpolation, Linear Rapid Interpolation, RS232, ATLM laser - Blum, MC D80, High Speed Skip Function, Super GI.4 Control
The F9 is designed to provide stiffness and rigidity for chatter-free, heavy cutting, roughing and finishing on the same machine, agility for high-speed / hard-milling and accuracies for tight-tolerance blends and matches typical of complex, 3-D contoured geometry associated with die/mold and medical production.Regular maintenance performed by Makino service only to keep the machines in top performing condition.
Specifications
| Manufacturer | Makino |
| Model | F9 |
| Year | 2015 |
| Condition | Used |

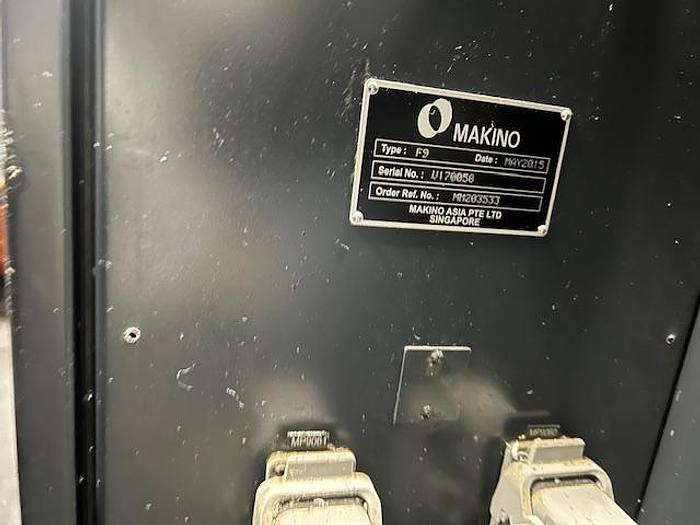

| Serial Number | V170058 |
| Stock Number | 3647 |
| Table Size | 72.83" x 31.50" |
| Max. Table Load Capacity | 5,511 lbs |
| X- Axis Travel | 63" |
| Y-Axis Travel | 31.50" |
| Z-Axis Travel | 25.60" |
| Spindle Speed | 20,000 RPM |
| Spindle Taper | HSK-A63 |
| Spindle Motor | 49.6/33.5 HP |

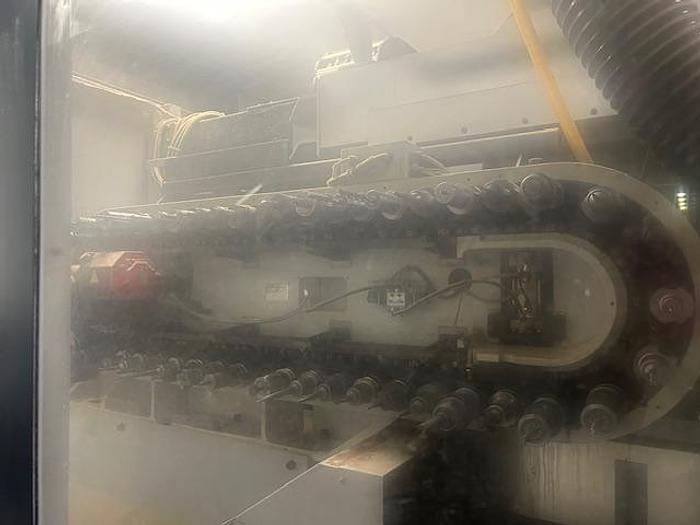

| Auto Tool Change Capacity | 48 ATC |
| Rapid Traverse Rate X, Y & Z | 945 IPM |
| Max. Tool Diameter | 7.87" |
