Kingston CJ30160C CNC Flat Bed Lathe W/ Live Milling
Kingston CJ30160C CNC Flat Bed Lathe W/ Live Milling
Contact us for price
Location:Belgium, WI
or
Call 1-262-284-5611
Description

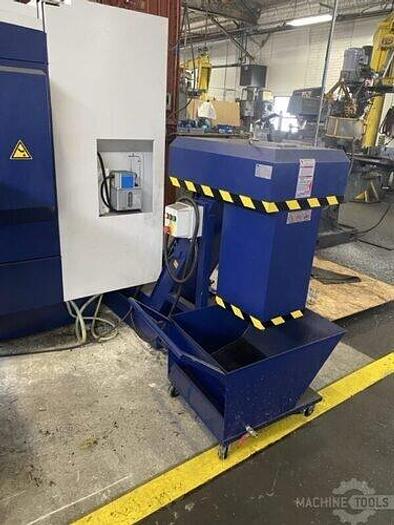

Fanuc Oi-TF Plus, C-Axis, Coolant System, MPG Hand wheel, Auto Lube, Work Light,V12 Live Tooling Turret VDI 40 Wired: 220 Volt 3 Ph, 25″ 3 Jaw Chuck A2-11 Spindle Mount, 25″ 4 Jaw Chuck A2-11 Spindle Mount, 8.3″ Steady Rest With Roller Jaws, 14.9″ Steady Rest With Roller Jaws, 19.7″ Steady Rest With Roller Jaws, Fanuc a30i Servo Spindle Motor, Boring Bar Holder On Cross Slide, Hydraulic Tailstock, Heavy Duty Live Center 6 MT, Follow Rest, Auto Tool Probe, Transformer, Chip Conveyor With Cart Tail Exit
Specifications
| Manufacturer | Kingston |
| Model | CJ30160C |
| Year | 2024 |
| Condition | Used |
| Stock Number | 3655 |
| Swing Over Bed | 30" |
| Swing Over Cross Slide | 20.7" |
| Swing Over Gap | 41.2" |
| Distance Between Centers | 160" |
| Width Of Bed Ways | 22" |
| Hight From Floor To Work Center | 46.5" |
| Spindle Bore Through Hole | 7.5" |
| Spindle Nose | D1-11 |
| Spindle Speeds | 8-800 RPM |
| Longitudinal Feed Ranges | .00024 - .0168 |
| Cross Feed Ranges | .00024 - .0084 |
| Compound Slide Travel | 9.4" |
| Cross Slide Travel | 21.2" |
| Tailstock Quill Travel | 11.8" |
| Tailstock Quill diameter | 5.1" |
| Tailstock Quill Taper | MT#6 |
| Spindle Motor | 20 HP |
| Electrical Dual Voltage | 230V/460V/3ph/60Hz |
| Prewired | 230V |
| Coolant Pump Motor | 1/4 HP |
| Approx. Machine Dimensions | 243" x 62" x 52.7" |
| Approx. Machine Weight | 14,300 lbs |
