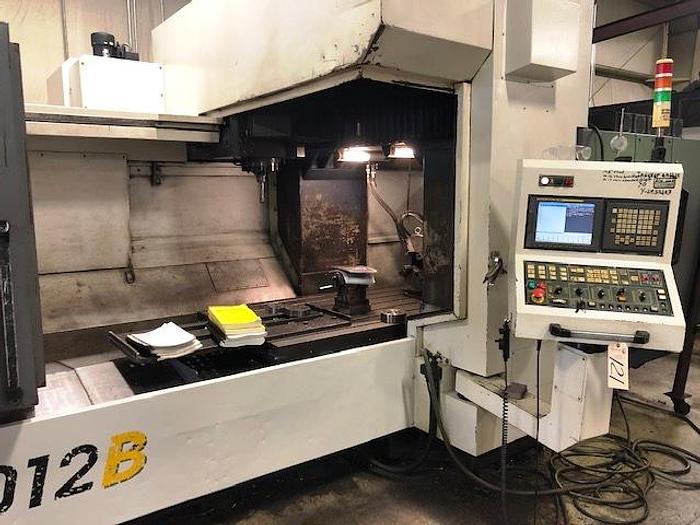

YCM DCV 2012B 4-Axis CNC Vertical Bridgemill
No longer available
YCM DCV 2012B 4-Axis CNC Vertical Bridgemill
Location:Belgium, WI
Description

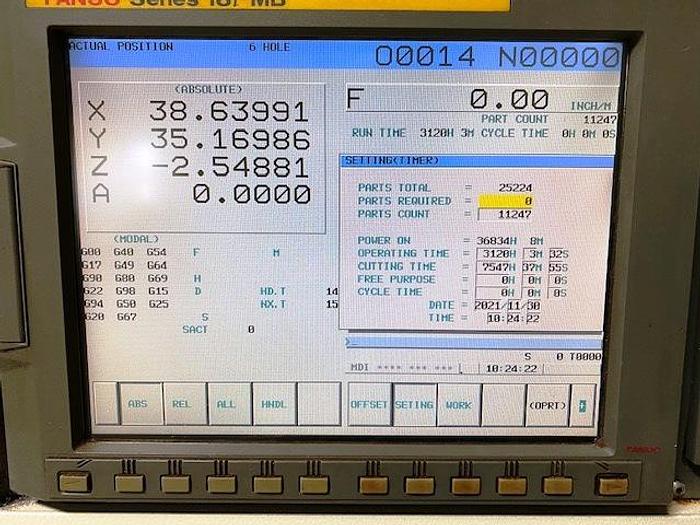

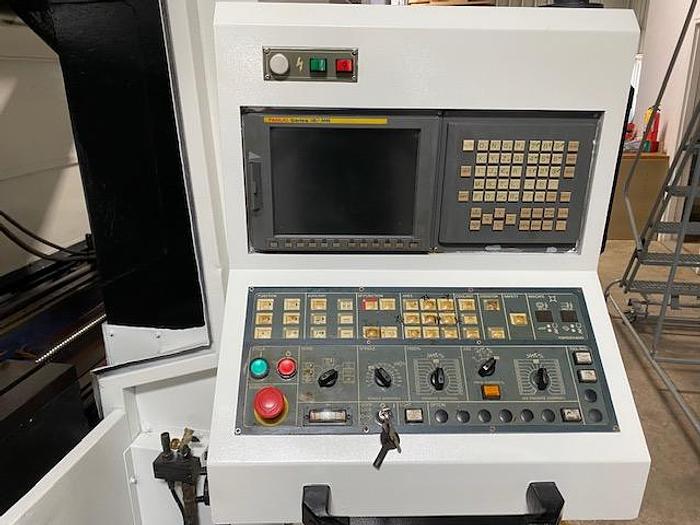

Fanuc 18i-MB

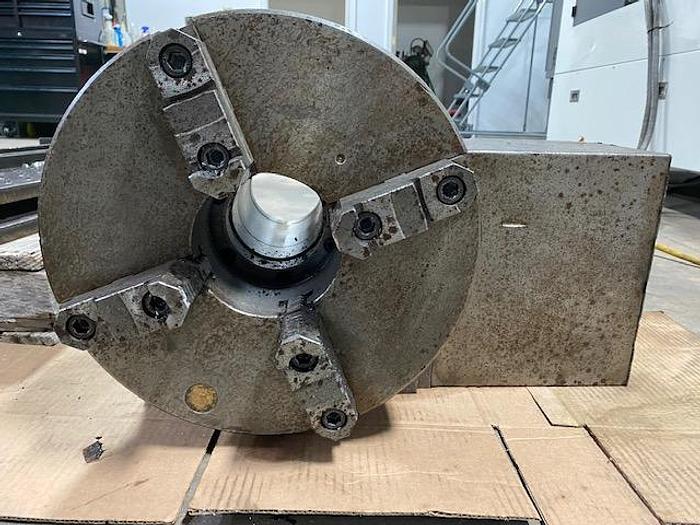

16" 4th Axis Rotary W/ 5-1/2" Thru Hole
Tailstock

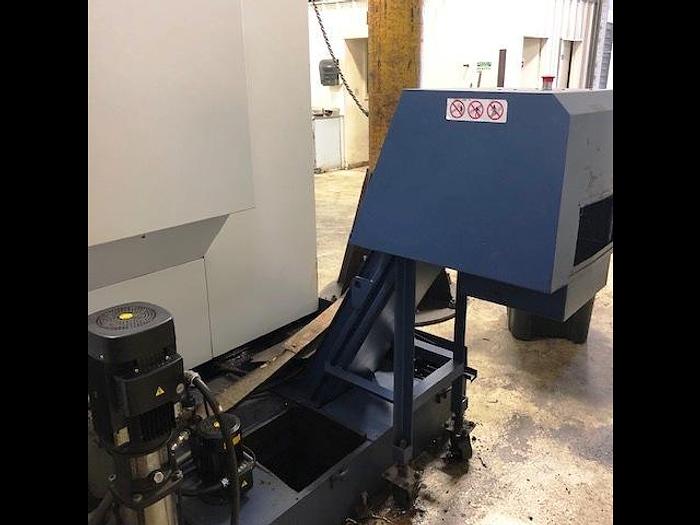

Chip Conveyor
Dual Chip Augers
Rigid Tapping

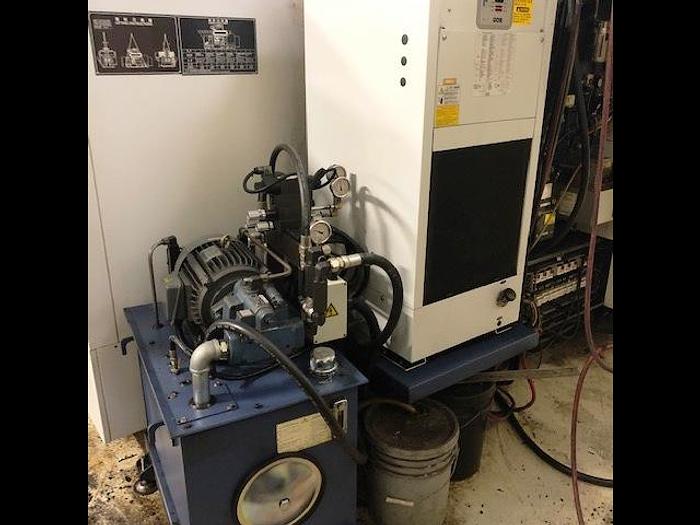

Complete Coolant System
Spindle Air Blast
Cutting Air Blast
Oil Skimmer
Air Gun
Work Status Condition Lights

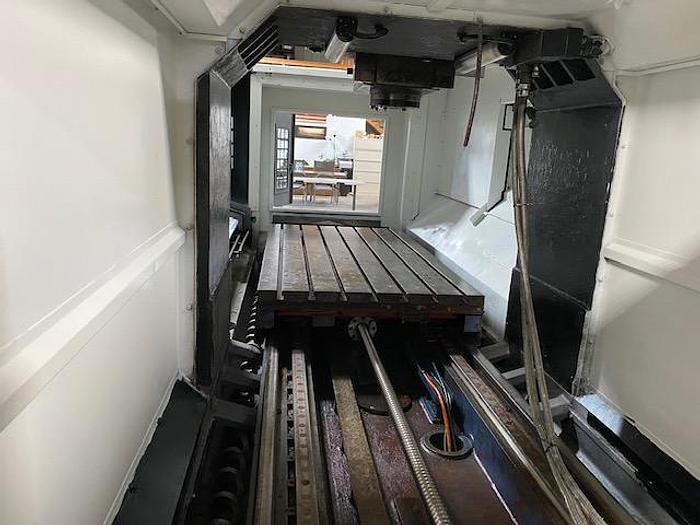

Linear Guides on X, Y Axis'
Boxed Ways on Z Axis
Remote Jog Handle
Electrical Cabinet Air Conditioning System
Full Enclosure
All Available Manuals

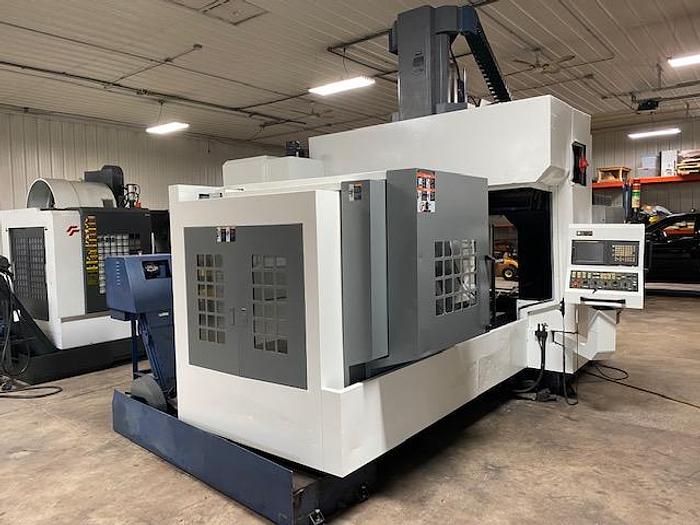

Double Column Bridge Style Design
The DCV series combines accuracy, rigidity, and power into the ultimate double column vertical machining center. Advanced design and production workmanship delivers the highest performance standard demanded by die mold, automotive, and aerospace industries
Specifications
| Manufacturer | YCM |
| Model | 2012B |
| Year | 2008 |
| Condition | Used |
| Stock Number | 3510 |

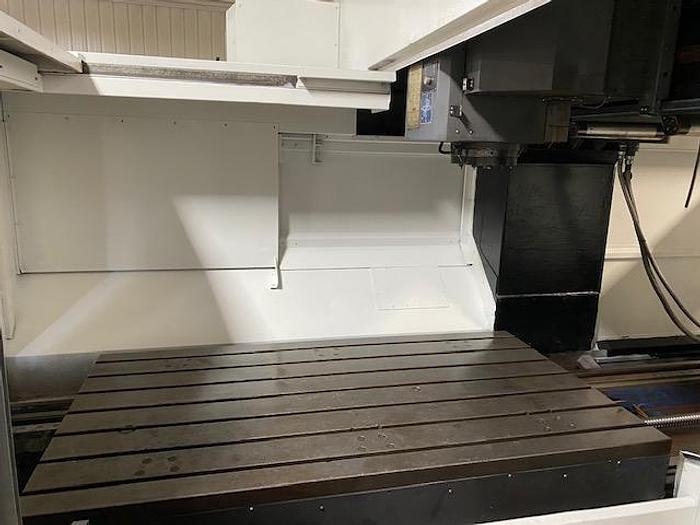

| Table Size | 78.74" x 43.31" |
| Table Load Capacity | 8,818 lbs |
| X-Axis Travel | 78.74" |
| Y-Axis Travel | 47.24" |
| Z-Axis Travel | 30" |
| Spindle Speed | 10,000 RPM |
| Spindle Taper | CT# 50 |
| Spindle Motor | 30 HP |
| Spindle Nose To Table Top | 7.87" - 37.87" |
| Tool Magazine Capacity | 60 ATC |
| Max. Tool Diameter Length/Width | 4.92" / 13.78"/ 44 lbs |
| Rapid Traverse Rate X, Y, & Z | 1417 IPM/ 945 IPM |
| Cutting Feed Rate | 394 IPM |
| Machine Dimensions | 214" x 138" x 157" |
| Machine Weight | 46,297 lbs |
